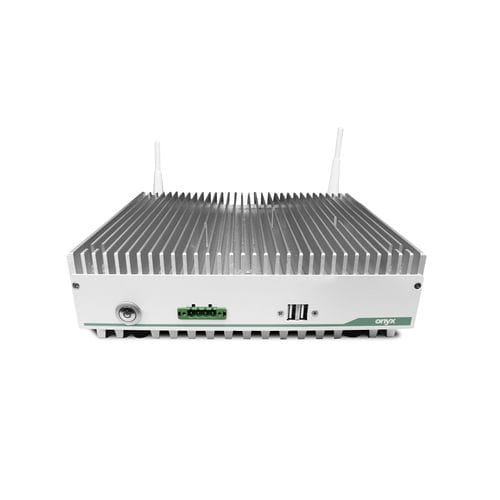

Intel® Core™ i series medical box PC MedPC-9210

for healthcare facilitiesfor medical recordsportable

Intel® 13th Gen Core i3/i5/i7/i9 Processor Support DDR4 DIMM up to 64GB memory Support TPM 2.0 for security management Support USB 3.2 Gen 2 Type A x 4 and USB 2.0 x2 Support Digital IO (optional) Support External power switch (optional) Main Specifications Processor - Intel® 13th gen Core™ i9/i7/i5/i3 System Memory - Supports DDR4 3200 SO-DIMM x 2 up to 64GB OS Support - Windows® 11, Linux (optional) Storage Disk Drive - 2.5” SATA SSD x 1 Storage - M.2 2242 up to 2T Security - TPM 2.0 Wireless Communication - WiFi6E+Bluetooth 5.3(optional) I/O USB - (Rear) USB 3.2 Gen 2 x 4, USB 2.0 x 2 (Rear) USB 3.0 x 2 (optional) (front) USB 2.0 x2 (optional) Serial Port - RS-232 x 2 Display output - DP 1.4 x 2, HDMI 2.0 x 1 Ethernet - Gigabit LAN x 2 Video - HDMI2.0b x1 , DP1.4a x2 Audio - Mic-in x 1 , Line-out x 1 Functional Ports Grounding Pin x 1 Digital IO x1 (optional) External Power Switch (optional) DC-in - 12V DC-in x 1 Mechanical and Environmental Operating Temperature - 0°C ~ 35°C(32°F ~ 95°F) Storage Temperature - -20°C ~ 60°C(-4°F ~ 140°F) Dimension - 251 x 88 x 231 (mm) Package Size - 365 x 355 x 300 (mm) Gross weight - 5.7 kg Net Weight - 4.5 kg Certifications CE : EN 60601-1-2: 2015 + A1: 2021 ( V4.1), EN 60601-1: 2007 + A1:2013 +A2:2021 ( V3.2) EN 55032:2015/A1:2020 EN55035:2017/A11:2020( ITE) IEC62368-1:2020+A11:2020 ( ITE) FCC : Part 15B/ Part 18 UL : ANSI AAMI ES60601-1:2005/A1:2012/A2:2021( V3.2) cUL : CAN/CSA-C22.2 No. 60601-1:14 (IEC 60601-1: 2005+A1:2012+A2:2020,MOD) ( V3.2)
