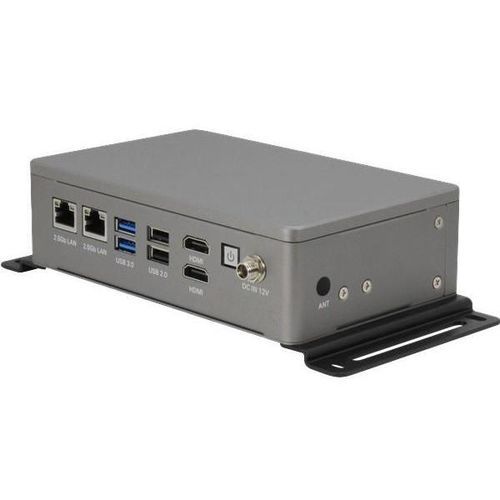

Intel® Atom™ medical box PC BOXER-6406U-ADN

fanless

Overview
The BOXER-6406U-ADN is a fanless compact embedded box PC designed for industrial edge computing and embedded automation. It integrates Intel Atom® Processor X-series/N-series performance with low power consumption, supports DDR5 memory, and offers wide-temperature operation for deployment in harsh environments.

Key features

• Fanless design for silent, maintenance-free operation
• Intel Atom® Processor X-series/N-series support
• DDR5 4800MHz memory via SODIMM
• Dual 2.5GbE ports for high-speed networking
• M.2 2280 M-Key for NVMe storage and M.2 2230 E-Key for wireless modules
• USB 3.2 Gen 2 Type-A ports x2
• Onboard TPM 2.0 for secure boot and hardware security
• Wide operating temperature: -20°C to 60°C
• Compact form factor for space-constrained installations

Technical specifications

• Processor: Intel Atom® Processor X-series/N-series
• Memory: DDR5 4800MHz via SODIMM (capacity depends on module)
• Ethernet: 2 x 2.5GbE ports
• Storage/Expansion: 1 x M.2 2280 M-Key (NVMe/PCIe), 1 x M.2 2230 E-Key (wireless)
• USB: 2 x USB 3.2 Gen 2 Type-A
• Security: TPM 2.0 onboard
• Operating temperature: -20°C to 60°C
• Cooling: passive fanless cooling
• Form factor: compact embedded box PC

Typical applications

• Edge computing and industrial IoT gateways
• Machine vision and automation controllers
• Transportation and in-vehicle computing
• Network appliances and firewall appliances
• Remote monitoring and data acquisition
