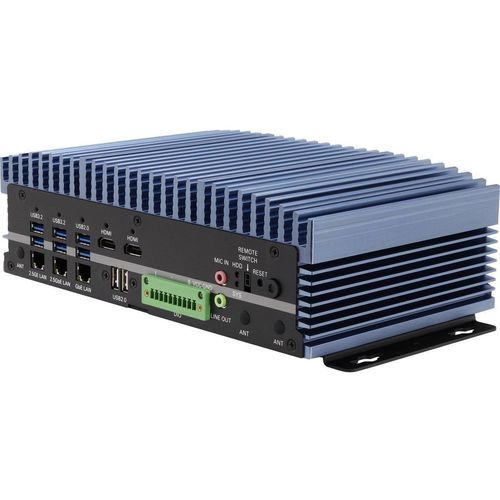

Intel® Core™ Ultra medical box PC BOXER-6648-ARS

fixedfanlessHDMI

Product
Fanless compact embedded computer with Intel® Core™ Ultra Processors (Series 2). Designed for industrial embedded applications requiring wide input voltage range, extended operating temperature and multiple display/network interfaces.

Key features

• Intel® Core™ Ultra Processors (Series 2)
• Intel® Xe LPG Graphic Engine
• Dual-Channel DDR5 SODIMM x2, up to 96GB
• HDMI 2.0 x2
• Intel® Ethernet Controller I226-LM, 2.5GbE LAN x2 / Intel® Ethernet Connection I219-LM, 1GbE LAN x1
• Wide range 10V ~ 35V DC input with circuit protection
• Operating temperature: -25°C ~ 60°C
• Onboard TPM 2.0
• Supports iAMT (only for A2 SKU)

Downloads
BOXER-6648-ARS | Datasheet | English | - | 897 KB | 2025-11-12

Technical specifications

• Form factor: Fanless compact embedded computer
• Processor: Intel® Core™ Ultra Processors (Series 2)
• Graphics: Intel® Xe LPG Graphic Engine
• Memory: Dual-Channel DDR5 SODIMM x2, up to 96GB
• Display: HDMI 2.0 x2
• LAN: Intel® Ethernet Controller I226-LM (2.5GbE) x2 or Intel® Ethernet Connection I219-LM (1GbE) x1
• Power input: Wide range 10V ~ 35V DC with circuit protection
• Operating temperature: -25°C ~ 60°C
• Security: Onboard TPM 2.0
• Manageability: iAMT support (A2 SKU only)
