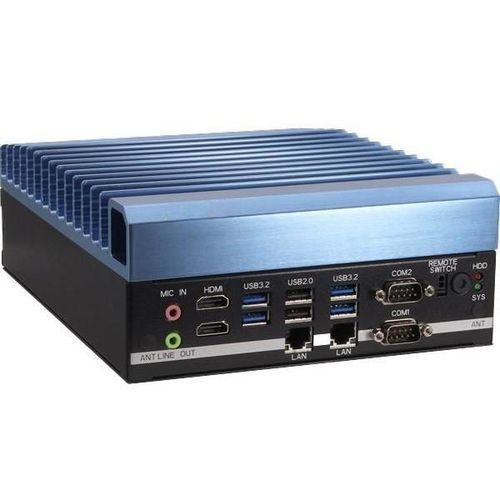

Intel® Core™ medical box PC BOXER-6645U-RPL

for healthcare facilitiesfixedHDMI

Overview
Fanless embedded box PC designed for medical applications. Supports LGA 1700 socket for 12th/13th/14th Gen Intel Core processors with Intel H610E chipset. Suitable for integration with clinical devices and medical imaging systems where silent operation and a wide temperature range are required.

Product category
Medical box PC for integration into medical equipment and clinical IT systems.

Key features

• LGA 1700 socket, compatible with 12th/13th/14th Gen Intel Core processors
• Intel H610E chipset
• Fanless design — wide operating temperature: -25°C to 70°C
• Video outputs: 2× HDMI
• Network: 2× Gigabit Ethernet (GbE)
• USB: 6× USB Type-A
• Serial: 2× RS-232/422/485, optional 4× RS-232
• Storage: 2 internal 2.5" SSD bays
• Power input: 10–35 VDC
• Security: TPM 2.0 onboard

Technical specifications

• Form factor: Fanless embedded box PC
• CPU socket: LGA 1700 (supports 12/13/14th Gen Intel Core)
• Chipset: Intel H610E
• Operating temperature: -25°C to 70°C
• Video output: 2× HDMI
• LAN: 2× Gigabit Ethernet (GbE)
• USB: 6× USB Type-A
• Serial: 2× RS-232/422/485; optional 4× RS-232
• Storage bays: 2× internal 2.5" SSD bays
• Power input: 10–35 VDC
• Security: TPM 2.0
