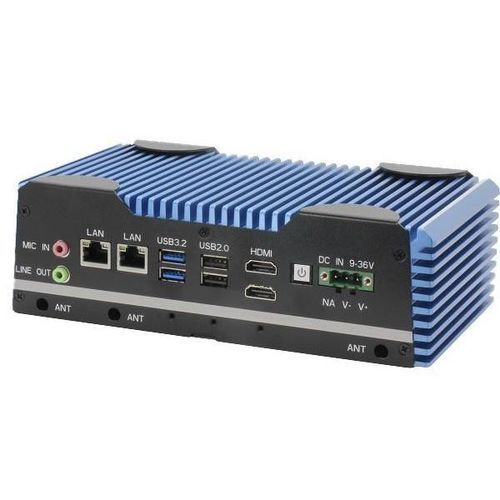

Intel® Core™ medical box PC BOXER-6617-ADN

Intel® Processor N-seriesfor healthcare facilities

Product overview
Fanless compact embedded PC for industrial edge and AI applications. Supports Intel® Core™ i3 N-series / Intel® Atom® X / Intel® Processor N-series SoC (Alder Lake-N). Designed for wide temperature range and flexible power input for deployment in constrained environments.

Key features

• Intel® Core™ i3 N-series / Intel® Atom® X / Intel® Processor N-series SoC (Alder Lake-N)
• 1× DDR5 SODIMM, 4800 MHz
• 2× 2.5GbE ports
• M.2 2280 M-Key and M.2 2230 E-Key slots
• M.2 3052 B-Key slot for 5G modem
• SuperSpeed+ USB 3.2 Gen 2
• Onboard TPM 2.0
• Wide-range DC input 9 ~ 36V
• Extended operating temperature: -20 °C to 70 °C
• Optional AI accelerator support: Hailo-8™ M.2 2280 module

Technical specifications

• Model: BOXER-6617-ADN
• Processor options: Intel® Core™ i3 N-series / Intel® Atom® X / Intel® Processor N-series SoC (Alder Lake-N)
• Memory: 1× DDR5 SODIMM, 4800 MHz
• Network: 2× 2.5GbE
• Storage / expansion: M.2 2280 M-Key, M.2 2230 E-Key
• Cellular (5G): M.2 3052 B-Key for 5G modem
• USB: SuperSpeed+ USB 3.2 Gen 2
• Security: Onboard TPM 2.0
• Power: Wide-range input 9 ~ 36V DC
• Operating temperature: -20 °C to 70 °C
• AI acceleration: Supports Hailo-8™ M.2 2280 module (optional)

Downloads
Name: BOXER-6617-ADN
Size: 1180 KB
Category: Datasheet
Language: English
Version: -
Release Date: 2025-11-12
