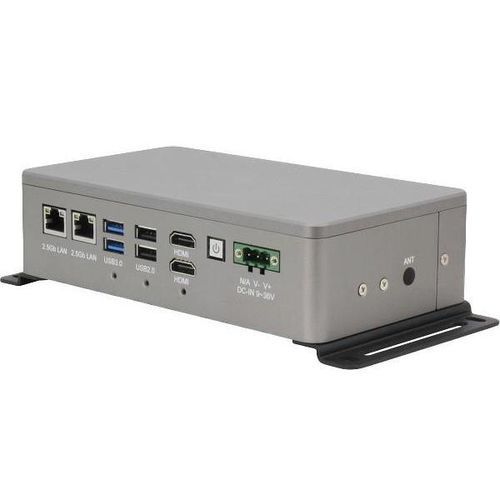

Intel® Atom™ medical box PC BOXER-6406-ADN

fanless

Overview
Fanless compact embedded box PC designed for industrial edge computing. Supports Intel Atom® Processor X-series/N-series, DDR5 4800MHz memory, dual 2.5GbE and M.2 expansion for flexible I/O and storage.

Key features

• Intel Atom® Processor X-series / N-series
• DDR5 4800MHz SODIMM
• 2 x 2.5GbE network interfaces
• M.2 2280 M-Key x1 for storage, M.2 2230 E-Key x1 for wireless
• 2 x USB 3.2 Gen 2 Type-A
• Onboard TPM 2.0 for hardware security
• Wide DC input range 9 ~ 36V
• Operating temperature -20 ~ 60°C
• Fanless cooling, compact chassis

Applications

• Industrial automation and control
• Edge computing and IoT gateways
• Transportation and fleet systems
• Factory monitoring and data acquisition

Technical specifications

• Processor family: Intel Atom® Processor X-series / N-series
• Memory: DDR5 4800MHz SODIMM (slots and max capacity per variant)
• Ethernet: 2 x 2.5GbE
• Storage expansion: 1 x M.2 2280 M-Key, 1 x M.2 2230 E-Key
• USB: 2 x USB 3.2 Gen 2 Type-A
• Security: Onboard TPM 2.0
• Power input: Wide range 9 ~ 36V DC
• Operating temperature: -20 ~ 60°C
• Cooling: Fanless design
• Form factor: Compact embedded box PC

Download
Name: BOXER-6406-ADN
Category: Datasheet
Size: 468 KB
Language: English
Version: -
Release Date: 2025-11-12
