Intel® Core™ Ultra 7 medical box PC BOXER-6647-MTH

Intel® Core™ Ultra 5fanless

Product overview

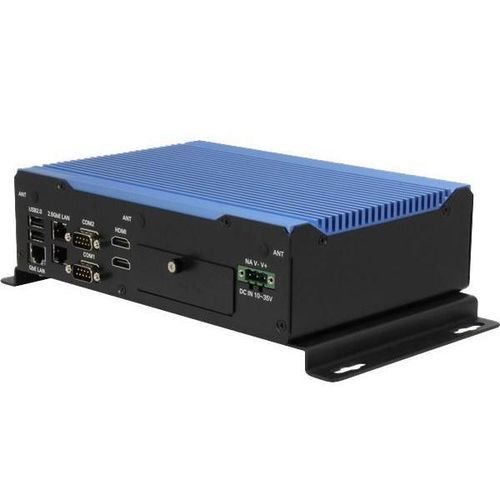

The BOXER-6647-MTH is a fanless, compact embedded box PC designed for industrial edge computing and control applications. Powered by Intel® Core™ Ultra 5 or Ultra 7 processors, it delivers scalable CPU performance in a robust, low-noise form factor with wide input voltage and extended operating temperature range.

Key features

• Intel® Core™ Ultra 5 or Intel® Core™ Ultra 7 processor (model dependent)
• DDR5 5600 MT/s SO-DIMM x2, up to 64GB (one DIMM user-accessible via rear chassis; second DIMM not user-accessible; preinstallation of second module available on request)
• Accessible M.2 2280 NVMe SSD tray plus 2.5" SSD tray for flexible storage
• M.2 3052 B-Key slot for 5G module integration
• USB 3.2 Gen 2 (Type-A) x4 for high-speed peripheral connectivity
• Onboard TPM 2.0 for platform security
• Wide DC input range: 9V–36V for vehicle and industrial power environments
• Operating temperature: -20°C to 60°C for deployment in harsh environments

Applications

• Industrial automation and control
• Edge computing and data acquisition
• Mobile and vehicle-mounted computing (transportation, logistics)
• Surveillance and network appliances in outdoor or factory settings

Technical specifications

• Processor: Intel® Core™ Ultra 5 or Intel® Core™ Ultra 7 (model dependent)
• Memory: DDR5 5600 MT/s SO-DIMM x2, up to 64GB (one DIMM accessible via rear chassis; second DIMM not user-accessible)
• Storage: Accessible M.2 2280 NVMe SSD tray + 2.5" SSD tray
• Expansion: M.2 3052 B-Key slot for 5G module
• USB: 4 × USB 3.2 Gen 2 Type-A
• Security: Onboard TPM 2.0
• Power Input: 9V–36V DC wide input
• Operating Temperature: -20°C to 60°C
• Design: Fanless compact embedded box PC

Download
Name: BOXER-6647-MTH
Category: Datasheet
Language: English
Size: 472 KB
Release Date: 2025-11-12
