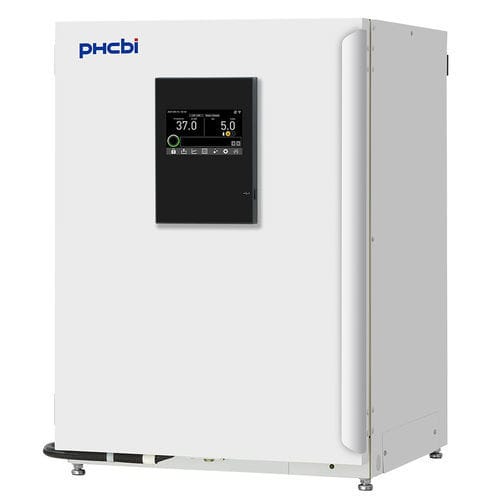

CO2 laboratory incubator MCO-173AIC-PE

for cell culturesstainless steelcopper

Overview
The MCO-173AIC-PE CO₂ incubator is a 165 L laboratory incubator engineered for precise CO₂ control, fast recovery after door openings and continuous antimicrobial surface protection with an inCu-saFe copper‑enriched stainless steel interior. Intended for R&D, clinical and production lab environments requiring reproducible cell culture conditions.

Main features

• Direct Heat & Air Jacket System for accurate, uniform and responsive chamber temperature control.
• Dual IR CO₂ sensor for rapid gas recovery and stable CO₂ control without overshoot during/after door openings.
• inCu-saFe copper‑enriched stainless steel interior providing continuous antimicrobial surface protection.
• 7-inch full‑color WVGA LCD touchpanel (glove‑friendly) for intuitive operation and local data display.
• USB data logging and transfer for monitoring and documentation.
• Rounded interior corners and integrated shelf supports for straightforward cleaning.

Performance & workflow

• Precise chamber stability supports sensitive cell cultures and reproducible results.
• Rapid recovery minimizes experimental downtime after door openings.
• 165 L usable volume suitable for scalable R&D, clinical and small production workflows.

Contamination control

• inCu-saFe copper‑enriched alloy surfaces reduce background contamination risk by providing continuous antimicrobial activity without affecting cultured cells.
• Optional decontamination systems: SafeCell UV‑LED and H₂O₂ decontamination board/vapor generator (see options for codes and consumables).

Construction & usability

• Exterior: painted steel (rear cover not painted).
• Interior: inCu‑saFe copper‑enriched stainless steel alloy.
• Heating: Direct Heat & Air Jacket System.
• Inner door: 1 gas‑tight tempered glass inner door; outer door: field reversible.
• Shelf system: supplied with 4 InCu‑saFe stainless shelves (470 x 450 x 12 mm); supports up to 10 shelves; max load 7 kg per shelf.
• Access port: 1 (rear), Ø 30 mm.

Options & expandability

• SafeCell UV‑LED decontamination system (optional).
• H₂O₂ decontamination board and vapor generator (optional, consumables available).
• CO₂ gas accessories: pressure regulator, automatic cylinder changeover, semi‑automatic gas calibration kit.
• Optional communication boards: Modbus, OPC‑UA; analogue 4‑20 mA interface standard.

Technical specifications

• Model: MCO-173AIC-PE
• Effective volume: 165 L
• External dimensions (W x D x H): 620 x 730 x 905 mm
• Internal dimensions (W x D x H): 490 x 523 x 665 mm
• Net weight: 69 kg
• Temperature control range & fluctuation: AT +5 ~ +50 °C, ±0.1 °C
• Temperature uniformity: ±0.25 °C
• CO₂ control range & fluctuation: 0 ~ 20 %, ±0.15 %
• Humidity level & fluctuation: ~95 % RH, ±5 % RH
• H₂O₂ decontamination: Optional
• Temperature sensor: Thermistor
• CO₂ sensor: Dual IR
• Display: 7" WVGA full‑color LCD touchpanel
• Exterior material: Painted steel (rear cover not painted)
• Interior material: inCu‑saFe copper‑enriched stainless steel alloy
• Insulation: Expandable styrene‑acrylonitrile beads
• Heating method: Direct Heat & Air Jacket System
• Outer door: 1 (field reversible)
• Inner door: 1 gas‑tight tempered glass
• Standard shelves: 4 x InCu‑saFe stainless shelves (470 x 450 x 12 mm)
• Max load per shelf: 7 kg
• Max shelf capacity: 10 shelves
• Access port: 1 (rear), Ø 30 mm
• Alarms: power failure, out‑of‑temperature, high temperature, out‑of‑CO₂, door open (visual/buzzer/remote states)
• Power supply: 230 V, 50 Hz
• Noise level: 25 dB
• Options examples: SafeCell UV‑LED (MCO-LUVS-PW), H₂O₂ board (MCO-HK-PW), H₂O₂ vapor generator (MCO-50HP-PW), InCu‑saFe shelves (MCO-170ST-PW), roller base, electric door lock with password, CO₂ regulator and cylinder changeover accessories, Modbus/OPC‑UA boards (MTR‑MODB1‑PW, MTR‑OPC1‑PW)
