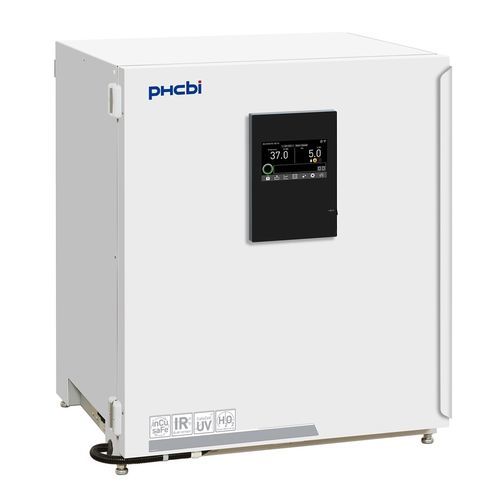

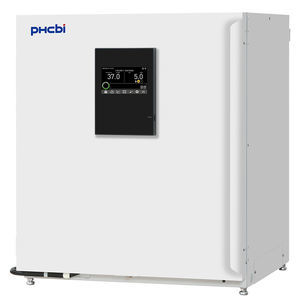

CO2 laboratory incubator MCO-233AICUVH-PE

carbon dioxidefor scientific researchfor cell cultures

Product overview
The MCO-233AICUVH-PE CO₂ incubator delivers controlled CO₂ concentration, rapid temperature response and integrated contamination control for reliable cell culture conditions. Its 230 L chamber suits research, clinical and small-scale production workloads.

Features

• Precise environment: Direct Heat & Air Jacket System for uniform, responsive temperature control; Dual IR CO₂ sensor for fast gas recovery without overshoot after door openings.
• Integrated high-speed decontamination: Vapourised H₂O₂ combined with UV-LED cleans the chamber in under three hours, achieving ≥6 log reduction of major contaminants.
• Continuous contamination control: InCu-saFe copper-enriched stainless steel interior and SafeCell UV-LED lamp continuously reduce airborne and humidifier-bath contamination without harming cultures.
• User-friendly & data ready: Colour LCD touchscreen (glove-friendly); logged data export via USB; easy-clean chamber with rounded corners and integrated shelf supports.

Key benefits

• Consistent culture conditions for reproducible results.
• Reduced downtime through rapid decontamination and fast gas recovery.
• 230 L capacity suitable for R&D, clinical studies and small-scale manufacturing.

Operation & safety
Electric door lock with password, field-reversible door, gas-tight tempered inner door, multi-level alarms (power failure, out-of-range temperature/CO₂, high temperature, door open) and optional communication interfaces for laboratory system integration.

Technical specifications

• Model: MCO-233AICUVH-PE
• External Dimensions (W x D x H): 770 x 730 x 905 mm
• Internal Dimensions (W x D x H): 643 x 523 x 700 mm
• Volume: 230 liters
• Net Weight: 80 kg
• Temperature Control Range & Fluctuation: AT +5 ~ +50 °C, ±0.1 °C
• Temperature Uniformity: ±0.25 °C
• CO₂ Control Range & Fluctuation: 0 ~ 20 %, ±0.15 %
• Humidity Level & Fluctuation: 95 %RH, ±5 %
• H₂O₂ Decontamination: Standard (integrated high-speed H₂O₂ system)
• Temperature Sensor: Thermistor
• CO₂ Sensor: Dual IR
• Display: LCD Touch Screen
• Exterior Material: Painted Steel (rear cover not painted)
• Interior Material: Stainless Steel Copper-Enriched Alloy (InCu-saFe)
• Insulation Material: Expandable styrene-acrylonitrile beads
• Heating Method: Direct Heat & Air Jacket System
• Outer Door: 1
• Electric door lock with password: Standard
• Field Reversible Door: Included
• Inner Door: 1 gas-tight tempered glass
• Shelves: 4 x Stainless Steel Copper-enriched Alloy (standard)
• Shelf Dimensions (W x D x H): 620 x 450 x 12 mm
• Max. Load per Shelf: 7 kg
• Max. Shelf Capacity: 10
• Access Port: 1 (position: Rear)
• Access Port Diameter: Ø 30 mm
• Alarms: Power Failure (V-B-R), Out of Temperature Setting (V-B-R), High Temperature (V-B-R), Out of CO₂ Setting (V-B-R), Door open (V-B)
• Power Supply: 230 V
• Frequency: 50 Hz
• Noise Level: 25 dB
• Standard Options: SafeCell UV® System (standard), H₂O₂ Decontamination Board (standard)
• H₂O₂ Vapor Generator: MCO-50HP-PW (option)
• H₂O₂ Reagent, pack of 6 bottles: MCO-20H2O2-PE (option)
• CO₂ Gas Pressure Regulator: MCO-010R-PW (option)
• Automatic CO₂ Cylinder Changeover System: MCO-21GC-PW (option)
• Semi-automatic one point Gas Calibration Kit: MCO-SG-PW (option)
• InCu-saFe® Shelf: MCO-230ST-PW (option)
• InCu-saFe® Half Tray System: MCO-35ST-PW (option)
• Double Stacking Bracket*: MCO-170PS-PW (option)
• Stacking Plate*: MCO-230SB-PW (option)
• Roller Base: MCO-230RB-PW (option)
• Optional communication systems: Analogue interface (4-20mA) Standard, Mod-bus interface board MTR-MODB1-PW, OPC-UA interface board MTR-OPC1-PW
