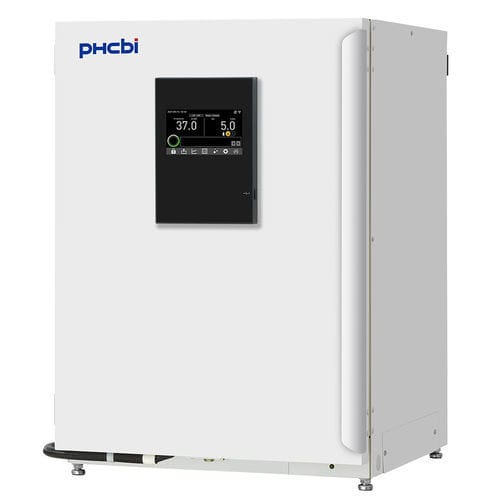

CO2 laboratory incubator MCO-173AICUV-PE

carbon dioxideinfraredfor scientific research

Product overview
The PHCbi MCO-173AICUV-PE CO₂ incubator is engineered for stable, reproducible cell culture conditions. With a 165 L chamber and advanced contamination-control features, it is suitable for research, clinical and commercial laboratories that require precise CO₂ and temperature management.

Contamination control & interior
Interior surfaces use inCu-saFe copper-enriched stainless steel for continuous antimicrobial action. The integrated SafeCell UV-LED decontamination lamp treats circulating air and the humidifying pan water during operation to reduce contamination risk without compromising cultures.

Temperature & CO₂ control
Direct Heat & Air Jacket System ensures fast, uniform and responsive temperature control. Dual IR CO₂ sensing provides rapid gas recovery with minimal overshoot after door openings, maintaining stable gas conditions for sensitive cultures.

Usability & data
A 7-inch colour LCD touch panel (glove-friendly) supports intuitive operation. Data logging and USB transfer enable straightforward monitoring and documentation. Interior rounded corners and integrated shelf supports simplify cleaning and routine use.

Key benefits

• Stable culture environment: accurate temperature and CO₂ control for reproducible results.
• Continuous contamination reduction: inCu-saFe interior plus SafeCell UV-LED.
• Appropriate capacity: 165 L chamber for R&D, clinical and small-scale production.
• Operational efficiency: rapid recovery after door openings and convenient data export.

Performance summary (table-style)
External dimensions (W x D x H): 620 x 730 x 905 mm
Internal dimensions (W x D x H): 490 x 523 x 665 mm
Volume: 165 litres
Temperature control range: AT +5 ~ +50 °C, ±0.1 °C
Temperature uniformity: ±0.25 °C
CO₂ control range & fluctuation: 0 ~ 20 %, ±0.15 %
Humidity level: ~95 % RH, ±5%

Technical specifications

• Model: MCO-173AICUV-PE
• Brand: PHCbi
• Volume: 165 L
• External dimensions (W x D x H): 620 x 730 x 905 mm
• Internal dimensions (W x D x H): 490 x 523 x 665 mm
• Net weight: 69 kg
• Temperature control range & fluctuation: AT +5 to +50 °C, ±0.1 °C
• Temperature uniformity: ±0.25 °C
• CO₂ control range & fluctuation: 0–20 %, ±0.15 % (Dual IR sensor)
• Humidity level: 95 %, ±5 %
• H₂O₂ decontamination: optional (board / vapour generator options)
• Control/display: 7 inch colour LCD touch screen (data logging via USB)
• Construction: painted steel exterior; stainless steel copper-enriched alloy interior (inCu-saFe)
• Insulation: expandable styrene-acrylonitrile beads
• Heating: Direct Heat & Air Jacket System
• Doors: 1 outer door (field reversible), 1 gas-tight tempered glass inner door; electric door lock with password (standard)
• Shelves: 4 × inCu-saFe shelves (470 x 450 x 12 mm); max load per shelf 7 kg; max shelf capacity 10
• Access port: 1 rear port, Ø 30 mm
• Alarms: power failure, out-of-temperature setting, high temperature, out-of-CO₂ setting, door open (visual/buzzer/record)
• Power supply / frequency: 230 V / 50 Hz
• Noise level: ~25 dB
• Options & accessories: SafeCell UV-LED (standard), H₂O₂ board (MCO-170HB-PE), H₂O₂ vapour generator (MCO-50HP-PW), CO₂ regulator (MCO-010R-PW), auto cylinder changeover (MCO-21GC-PW), semi-automatic gas calibration kit (MCO-SG-PW), InCu-saFe shelves/trays, stacking bracket, roller base, communication boards (4-20 mA, Modbus, OPC-UA)
