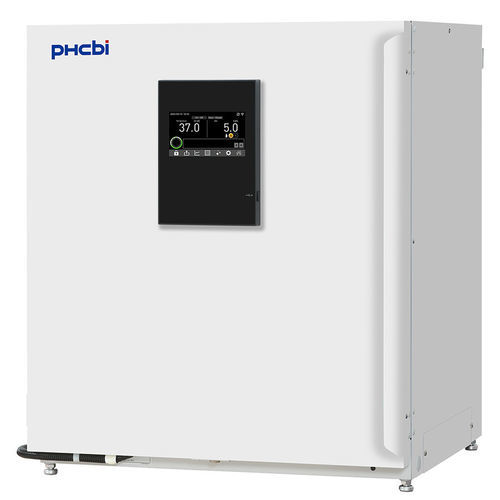

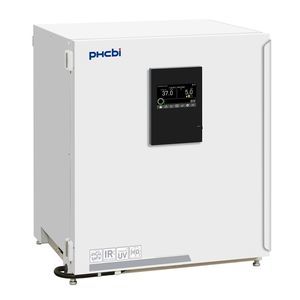

CO2 laboratory incubator MCO-233AIC-PE

carbon dioxidefor cell culturesbenchtop

Overview
The MCO-233AIC-PE IncuSafe CO₂ Incubator delivers precise environmental control and active contamination prevention for reliable and reproducible cell culture results. With a 230 litre chamber, it is designed for laboratories requiring consistent performance, ease of use and efficient workflows.

Precise & regulated environment
The Direct Heat and Air Jacket System provides accurate, uniform and highly responsive temperature control within the chamber. The Dual IR CO₂ sensor ensures rapid gas recovery without overshoot, even after frequent door openings, supporting sensitive cell cultures and reproducible results.

Continuous contamination prevention
The inCu-saFe copper-enriched stainless steel interior provides natural antimicrobial properties, offering active background protection to reduce contamination risk without affecting cultured cells.

Efficient workflows
Designed for busy laboratories the unit enables efficient operation with minimal downtime. Stable conditions and rapid recovery times allow uninterrupted experiments and consistent results.

Key benefits

• Optimised cell growth: outstanding chamber stability ensures reliable culture outcomes and reproducibility.
• Reduced contamination risk: inCu-saFe interior provides continuous antimicrobial protection during operation.
• Scalable capacity: 230 litre chamber supports applications from R&D to clinical and production environments.

Easy to use & data ready
Full colour LCD touchscreen allows intuitive operation (glove-friendly). Data logging and transfer via USB enable easy monitoring and documentation for laboratory processes. Interior features rounded corners and integrated shelf supports for quick and easy cleaning.

Technical specifications

• External Dimensions (W x D x H): 770 x 730 x 905 mm
• Internal Dimensions (W x D x H): 643 x 523 x 700 mm
• Volume: 230 liters
• Net Weight: 80 kg
• Temperature control range & fluctuation: AT +5 ~ +50 °C, ±0.1 °C
• Temperature uniformity: ±0.25 °C
• CO₂ control range & fluctuation: 0 ~ 20 %, ±0.15 %
• Humidity level & fluctuation: 95 %RH, ±5
• H₂O₂ decontamination: Optional
• Temperature sensor: Thermistor
• CO₂ sensor: Dual IR
• Display: LCD Touch Screen
• Exterior material: Painted steel (rear cover not painted)
• Interior material: Stainless steel copper-enriched alloy (inCu-saFe)
• Insulation material: Expandable styrene-acrylonitrile beads
• Heating method: Direct Heat & Air Jacket System
• Doors: 1 outer door (electric door lock with password standard, field reversible door included) and 1 gas-tight tempered glass inner door
• Shelves: 4 x stainless steel copper-enriched alloy shelves (dimensions 620 x 450 x 12 mm), max load per shelf 7 kg, max shelf capacity 10
• Access port: 1 rear port, diameter 30 mm
• Alarms: Power failure, Out of temperature setting, High temperature, Out of CO₂ setting, Door open (various audible/visual alarm modes)
• Power supply / Frequency: 230 V / 50 Hz
• Noise level: 25 dB
• Options (selection): SafeCell UV® System (MCO-LUVS-PW), H₂O₂ Decontamination Board (MCO-170HB-PE), H₂O₂ Vapor Generator (MCO-50HP-PW), CO₂ Gas Pressure Regulator (MCO-010R-PW), Auto CO₂ Cylinder Changeover (MCO-21GC-PW), InCu-saFe shelves and tray systems, stacking/roller bases, Modbus/OPC-UA/analogue interface options
