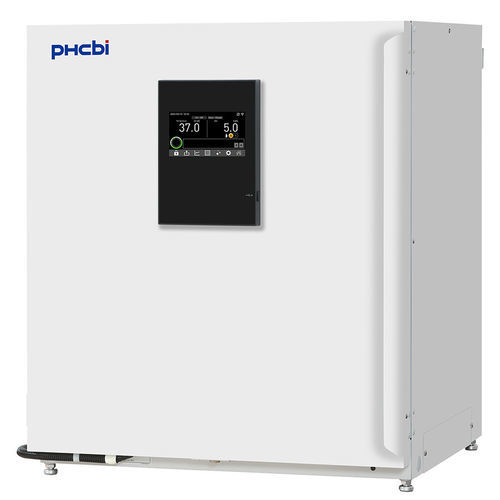

CO2 laboratory incubator MCO-233AICUV-PE

for cell culturesfor hospitalsbenchtop

Overview
The MCO-233AICUV-PE IncuSafe CO₂ Incubator delivers precise environmental control and active contamination prevention for reliable and reproducible cell culture results. With a 230 litre chamber, it is designed for laboratories requiring consistent performance, ease of use and efficient workflows.

Precise & regulated environment
The Direct Heat and Air Jacket System provides accurate, uniform and highly responsive temperature control within the chamber. The Dual IR CO₂ sensor ensures rapid gas recovery without overshoot, even after frequent door openings. This stable environment supports sensitive cell cultures and ensures reliable, repeatable results.

Continuous contamination prevention
The inCu-saFe copper-enriched stainless steel interior provides natural antimicrobial properties, while the integrated SafeCell UV-LED lamp continuously decontaminates circulating air and water in the humidifying pan. This active background protection reduces contamination risk without affecting cultured cells.

Efficient workflows
Designed for busy laboratories, the MCO-233AICUV-PE enables efficient operation with minimal downtime. Stable conditions and rapid recovery times allow uninterrupted experiments and consistent results. 230 litre chamber supports applications from R&D to clinical and production environments.

Key benefits

• Optimised cell growth — outstanding chamber stability for reproducible culture outcomes.
• Reduced contamination risk — SafeCell UV-LED and inCu-saFe interior provide continuous protection during operation.
• Scalable capacity — 230 L chamber suitable for R&D, clinical and production use.

Easy to use & data ready
Full colour LCD touchscreen for intuitive operation even with gloves. Data logging and transfer via USB enable easy monitoring and documentation. Interior features rounded corners and integrated shelf supports for quick and easy cleaning.

Technical specifications

• Model: MCO-233AICUV-PE
• External Dimensions (W x D x H): 770 x 730 x 905 mm
• Internal Dimensions (W x D x H): 643 x 523 x 700 mm
• Volume: 230 liters
• Net Weight: 80 kg
• Temperature control range & fluctuation: AT +5 ~ +50 °C, ±0.1 °C
• Temperature uniformity: ±0.25 °C
• CO2 control range & fluctuation: 0 ~ 20 %, ±0.15
• Humidity level & fluctuation: 95 %RH, ±5
• H2O2 decontamination: Optional
• Temperature sensor: Thermistor
• CO2 sensor: Dual IR
• Display: LCD Touch Screen
• Exterior material: Painted Steel (rear cover not painted)
• Interior material: Stainless Steel Copper-Enriched Alloy (inCu-saFe)
• Insulation material: Expandable styrene-acrylonitrile beads
• Heating method: Direct Heat & Air Jacket System
• Outer door: 1
• Electric door lock with password: Standard
• Field reversible door: Included
• Inner door: 1 gas tight - made of tempered glass
• Shelves: 4 × Stainless Steel Copper-enriched Alloy (max shelf capacity 10, max load per shelf 7 kg)
• Shelf dimensions (W x D x H): 620 x 450 x 12 mm
• Access port: 1 (position: rear, diameter: 30 mm)
• Alarms: Power Failure V-B-R; Out of Temperature Setting V-B-R; High Temperature V-B-R; Out of CO2 Setting V-B-R; Door open V-B
• Power supply: 230 V, Frequency: 50 Hz
• Noise level: 25 dB
• Options: SafeCell UV® System (standard); H2O2 Decontamination Board (MCO-170HB-PE); H2O2 Vapor Generator (MCO-50HP-PW); H2O2 Reagent pack (MCO-20H2O2-PE); CO2 Gas Pressure Regulator (MCO-010R-PW); Automatic CO2 Cylinder Changeover (MCO-21GC-PW); Semi-automatic one point Gas Calibration Kit (MCO-SG-PW); InCu-saFe Shelf (MCO-230ST-PW); InCu-saFe Half Tray System (MCO-35ST-PW); Double Stacking Bracket (MCO-170PS-PW); Stacking Plate (MCO-230SB-PW); Roller Base (MCO-230RB-PW)
• Optional communication systems: Analogue interface (4-20mA) Standard; Mod-bus interface board (MTR-MODB1-PW); OPC-UA interface board (MTR-OPC1-PW)
