Transfer mattress Decu

for hospital bedsdynamic airalternating pressure

Product overview

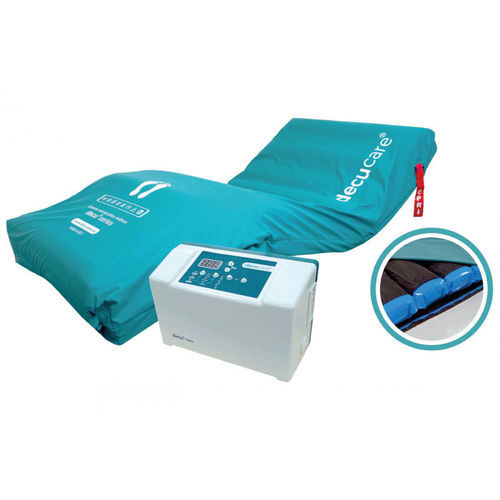

Hybrid air-foam replacement mattress combining passive foam support and an active low-pressure alternating system. Designed for prevention and therapy of pressure ulcers up to stage IV for bariatric patients. Ten flat cells distribute load (max. 450 kg) to reduce skin pressure. One head cell provides a pillow function and three cells include micro-ventilation. Total mattress height 12 cm preserves side-rail function. Integrated passive mattress allows use without initial inflation for rapid acute admission. Reinforced edges assist patient transfer and caregiver support. Available widths: 100 or 120 cm. Supplied with semi-automatic compressor with automatic pressure setting by patient weight.

MATTRESS

• Three hull cells with micro-ventilation to reduce heat and moisture
• 2-way stretch, waterproof, breathable, fire-retardant cover
• Washable up to 95°C for thermal disinfection
• 360° zipper with perimeter protective flap to reduce contamination risk
• Integrated power cable fixation system
• Six straps for secure fixation to the bed frame
• Quick-release CPR valve for emergency resuscitation
• Reinforced edges to facilitate standing and transfers
• QR safety quick-release connectors for easy cell disconnection and zero-pressure zones in high-risk areas (option)
• Enhanced hose protection (option)

COMPRESSOR

• Automatic pressure setting according to selected patient weight
• Alternate mode: APT – Alternate Pressure Therapy A-8-C (5/10/20 min)
• Static mode: CLP – Constant Low Pressure in all cells
• Auto-firm mode: LMP – Time-Limited Maximum Pressure (30 minutes)
• Transport mode: TM – transport mode with memory and easy disconnection, unlimited transport time
• Automatic key lock to prevent unintentional setting changes
• Acoustic and visual alarms: low pressure, power failure, service
• AVS – Anti Vibration System for reduced vibration and quiet operation (noise < 23.8 dB)
• START/STOP system for energy saving
• Memory function to retain set values
• Integrated compressor holder

TECHNICAL SPECIFICATIONS

• Load capacity: 450 kg
• Height: 12 cm
• Dimensions: 100/120 x 200 cm
• Number of cells: 10 cells – cell width 20 cm
• Pillow function: 1 head cell without alternation
• Micro-ventilation: 3 cells under hull
• CPR valve: quick-release, manual
• Mattress additional features: integrated power cable fixation; 6 fixation straps
• Mattress material: polyurethane
• Cleaning: thermal disinfection (washable to 95°C)
• Mattress weight: 12 kg
• Cover: PU, 2-way stretch, waterproof, breathable, fire-retardant, 95°C washable, 360° zipper with flap
• Compressor type: semi-automatic with LCD
• Compressor modes: 4 – alternate / static / auto-firm / transport
• Alternate mode: 3-chamber air exchange system A-B-C
• Time intervals: 5 / 10 / 20 minutes
• Alarms: acoustic and visual (low pressure / power failure / service)
• Key lock: automatic
• Compressor functions: memory, START/STOP, AVS
• Noise: <23.8 dB
• Holder: integrated
• Flow rate: 8 l/min
• Operating pressure: 5–38 mmHg
• Compressor material: ABS housing
• Compressor size: 17 x 26 x 12.5 cm
• Compressor weight: 3.4 kg
