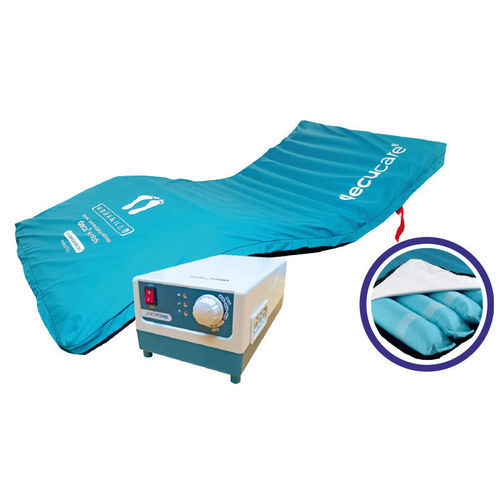

Hospital bed mattress Decu light

dynamic airalternating pressureair-operated

Overview
Innovative hybrid air-foam replacement mattress combining passive and active functions. Extremely low operating pressure for prevention and therapy of pressure ulcers up to stage IV (very high risk). Maximum indicated patient weight: 450 kg. Maximum mattress height in clinical overview: 18 cm, ensuring side-rail function remains intact. Integrated passive layer allows use without initial inflation for rapid acute admission. Reinforced edges facilitate patient mobilisation and provide support during care. Available widths: 100 cm or 120 cm.

MATTRESS

• 2-way stretch PU cover: waterproof, breathable, fire-retardant
• Cover washable up to 95°C; 360° zipper with perimeter protective flap
• Integrated power-cable fixation system
• 4 straps for secure fixation to bed
• Quick-release CPR valve for emergency resuscitation
• One head cell with pillow function; 3 cells with micro-ventilation

COMPRESSOR

• Manual compressor with 3-level rotary pressure adjustment
• Alternate mode (APT): A-B-C 3-chamber exchange, 12 min cycle
• Auto-firm mode (LMP): time-limited maximum pressure
• Visual low-pressure alarm
• AVS anti-vibration system for reduced vibration and quiet operation (<25 dB)
• START/STOP energy reduction system; integrated compressor holder

Technical parameters - MATTRESS
Load capacity: 150 kg
Height (technical table): 10 cm
Dimensions: 80/90 x 200 cm
Number of cells (technical table): 18 pcs (cell width 11 cm)
Pillow function (technical table): 4 head cells without alternation
Micro-ventilation: 3 cells with micro-ventilation system
CPR valve: quick-release, manual
Material (mattress): polyurethane
Cleaning: thermal disinfection
Weight: 5.9 kg
Cover: PU, 2-way stretch, waterproof, breathable, fire-retardant, washable to 95°C, 360° zipper with protective flap

Technical parameters - COMPRESSOR
Type: manual
Modes: 2 (alternate / auto-firm)
Alternate mode: 3-chamber air exchange A-B-C
Time interval: 12 minutes
Alarm: visual (low pressure)
Additional features: START/STOP, AVS anti-vibration
Noise: <25 dB
Holder: integrated
Flow rate: 4.5 l/min
Operating pressure: 35–70 mmHg
Material: ABS housing
Size: 7.6 x 14 x 26 cm
Weight: 2.4 kg

Characteristics / technical specifications

• Product name / model: Decu light
• Brand: PROMA REHA
• Hybrid system: passive + active air-foam mattress
• Overview indicated max. patient weight: 450 kg
• Table load capacity: 150 kg
• Mattress height (overview): max 18 cm; Technical table height: 10 cm
• Available widths (overview): 100 cm or 120 cm
• Mattress dimensions (table): 80/90 x 200 cm
• Number of cells: overview 10 flat cells; table: 18 pcs (width 11 cm)
• Pillow function: one head cell (overview); table: 4 head cells without alternation
• Micro-ventilation: 3 cells with micro-ventilation system
• Cover: PU, 2-way stretch, waterproof, breathable, fire-retardant, washable to 95°C, 360° zipper with flap
• CPR valve: quick-release, manual
• Material (mattress): polyurethane
• Cleaning: thermal disinfection
• Mattress weight: 5.9 kg
• Compressor type: manual with 3-level rotary control
• Compressor modes: alternate (APT A-B-C) and auto-firm (LMP)
• Compressor interval (alternate): 12 minutes
• Compressor flow rate: 4.5 l/min; operating pressure range: 35–70 mmHg
• Compressor noise: <25 dB; weight: 2.4 kg; size: 7.6 x 14 x 26 cm
• Compressor features: visual low-pressure alarm, AVS anti-vibration, START/STOP energy reduction, integrated holder
