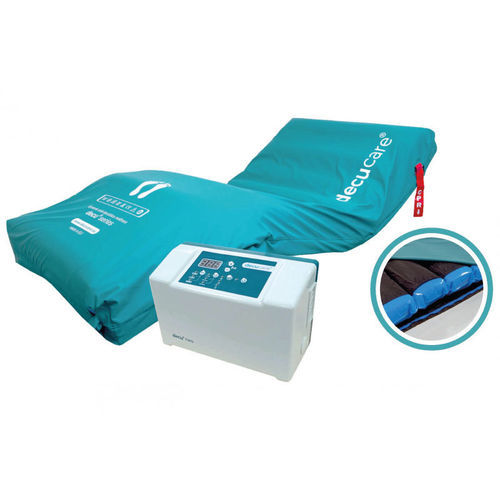

Transfer mattress Decu auto

for hospital bedsair-operatedfoam

Overview
Innovative hybrid air-foam system combining passive and active mattress in a single replacement unit. Extremely low operating pressure design for prevention and treatment of pressure ulcers up to stage IV. The mattress has 10 flat cells to distribute patient weight (max. 450 kg) and reduce skin pressure. One head cell provides a pillow function and three cells include micro-ventilation. Maximum height 18 cm preserves side-rail function and reduces fall risk. Integrated passive layer allows use without initial inflation for rapid acute admission. Reinforced edges assist patient transfer and caregiver support. Available in widths 100 cm and 120 cm.

MATTRESS

• 3 cells under hull with micro-ventilation to reduce heat and moisture
• 2-way stretch, waterproof, breathable, fire-retardant cover
• Easy maintenance - cover washable up to 95°C
• 360° zipper with perimeter protective flap to reduce contamination risk
• Integrated power cable fixation system
• 6 straps for secure fixation to the bed frame
• Quick release CPR valve for emergency resuscitation
• Reinforced edges to facilitate standing and lateral transfers
• QR safety Quick Release connectors for easy disconnection and zero-pressure in high-risk areas (option)
• Increased hose protection (option)

COMPRESSOR

• Automatic pressure setting based on selected patient weight
• Alternate mode: APT - Alternate Pressure Therapy A-8-C (5/10/20 min)
• Static mode: CLP - Constant Low Pressure in all cells
• Auto-firm mode: LMP - Time-Limited Maximum Pressure (30 minutes)
• Transport mode: TM - transport with memory and easy disconnection, unlimited transport time
• Automatic key lock to prevent unintended setting changes
• Acoustic and visual alarms: low pressure, power failure, service
• AVS - Anti Vibration System for reduced vibration and quiet operation (noise < 23.8 dB)
• START/STOP system for energy reduction
• Memory function to retain set values
• Integrated compressor holder

TECHNICAL SPECIFICATIONS

• Load capacity: 450 kg
• Height: 18 cm
• Dimensions: 100/120 x 200 cm
• Number of cells: 10 (cell width 20 cm)
• Pillow function: 1 head cell without alternation
• Micro-ventilation: 3 cells under hull
• CPR valve: quick release - manual
• Mattress additional functions: integrated power cable fixation; 6 fixation straps
• Mattress material: polyurethane
• Cleaning: thermal disinfection; cover washable up to 95°C
• Mattress weight: 15 kg
• Cover: PU, 2-way stretch, waterproof, breathable, fire-retardant, 95°C washable, 360° zipper with flap
• Compressor type: fully automatic with LCD
• Compressor modes: 4 (alternate/static/auto-firm/transport)
• Alternate mode: 3-chamber air exchange system A-B-C
• Time intervals (alternate): 5 / 10 / 20 minutes
• Compressor alarms: acoustic and visual for low pressure / power failure / service
• Key lock: automatic
• Compressor additional functions: memory, START/STOP, AVS
• Compressor noise: < 23.8 dB
• Compressor holder: integrated
• Flow rate: 8 l/min
• Operating pressure: 5-38 mmHg
• Compressor material: ABS housing
• Compressor size: 17 x 26 x 12.5 cm
• Compressor weight: 3.4 kg
