Hospital bed mattress Decu plus combi

alternating pressureair-operatedfoam

Product overview

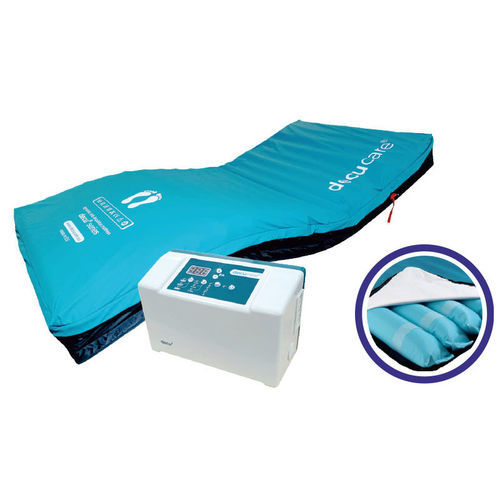

The Decu plus combi is a replacement alternating-pressure mattress system for prevention and treatment of pressure ulcers (decubitus) stage II–III. It combines a 13 cm air-cell layer and a 5 cm foam base, supports up to 200 kg and is available in widths 80 or 90 cm (length 200 cm). The system includes 20 air cells with 4 non-alternating head cells (pillow function) and 6 cells with micro-ventilation. Optional Quick Release (QR) connectors enable rapid zero-pressure disconnection in high-risk areas. The semi-automatic compressor sets pressure automatically according to patient weight.

MATTRESS

• 6 cells under the torso with micro-ventilation to reduce heat and moisture
• 2-way stretch, waterproof, breathable, fire-retardant cover
• Easy maintenance — cover washable up to 95°C
• 360° zipper with perimeter protective flap to reduce contamination risk
• Integrated power-cable fixation system
• 4 straps for secure fixation to the bed frame
• Quick-release CPR valve for rapid manual deflation during resuscitation
• QR — safety Quick Release connectors for easy disconnection of cells and to achieve zero pressure in high-risk areas (option)

COMPRESSOR

• Automatic pressure adjustment based on selected patient weight
• Alternate mode (APT) — A-B-C 3-chamber alternating cycle (5 / 10 / 20 min)
• Static mode (CLP) — Constant Low Pressure across all cells
• Auto-firm mode (LMP) — Time-limited maximum pressure (30 minutes)
• Transport mode (TM) — memory function and easy disconnection for patient transfers
• Automatic key lock to prevent unintentional setting changes
• Acoustic and visual alarms: low pressure, power failure, service required
• AVS — Anti Vibration System for reduced vibration and quiet operation (noise < 23.8 dB)
• START/STOP energy-saving system
• Memory function to retain set values
• Integrated compressor holder

Technical specifications

• Load capacity: 200 kg
• Mattress height: 13 cm (air) + 5 cm (foam)
• Dimensions: 80/90 x 200 cm
• Number of cells: 20 pcs (cell width 10 cm)
• Pillow function: 4 head cells without alternation
• Micro-ventilation: 6 torso cells
• CPR valve: quick-release, manual
• Additional mattress features: integrated power cable fixation; 4 fixation straps
• Mattress material: polyurethane (PU)
• Cleaning: thermal disinfection; cover washable up to 95°C
• Mattress weight: 5.9 kg
• Cover: PU, 2-way stretch, waterproof, breathable, fire-retardant, 95°C washable, 360° zipper with flap
• Compressor type: semi-automatic with LCD
• Compressor modes: 4 (alternate / static / auto-firm / transport)
• Alternate mode: 3-chamber A-B-C air exchange
• Time interval (alternate): 5 / 10 / 20 minutes
• Compressor alarms: acoustic and visual (low pressure / power failure / service)
• Key lock: automatic
• Compressor additional functions: memory, START/STOP, AVS (anti-vibration)
• Compressor noise: < 23.8 dB
• Compressor holder: integrated
• Flow rate: 8 l/min
• Operating pressure: 25–28 mmHg
• Compressor material: ABS housing
• Compressor size: 17 x 26 x 12.5 cm
• Compressor weight: 3.4 kg
