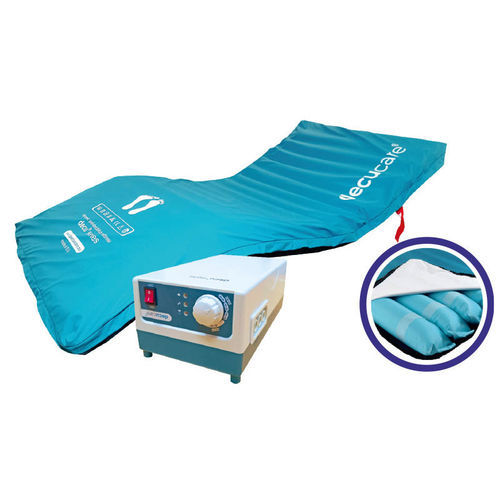

Hospital bed mattress overlay Decu plus

alternating pressurepolyurethane80x200 cm

Product overview
Decu plus is an overlay alternating-pressure mattress designed for prevention and treatment of pressure ulcers (decubitus) stage II to III. The system provides a 13 cm mattress height, a load capacity of 200 kg and 20 air cells. Four head cells provide a pillow function and six cells under the hull include a micro-ventilation system. Available widths: 80 or 90 cm. Option: QR safety Quick Release connectors to achieve zero pressure in high-risk areas. Supplied with a semi-automatic compressor that adjusts pressure automatically according to patient weight.

MATTRESS - Features

• 6 cells under the hull with micro-ventilation to reduce heat and moisture
• 2-way stretch PU cover: waterproof, breathable and fire-retardant
• Washable up to 95°C for thermal disinfection
• 360° zipper with perimeter protective flap to reduce contamination risk
• Integrated power cable fixation system
• 4 straps for secure fixation to the bed
• Quick-release CPR valve for emergency deflation
• Optional QR safety Quick Release connectors for easy cell disconnection and zero pressure in high-risk zones

COMPRESSOR - Features

• Automatic pressure setting based on selected patient weight
• Alternate mode (APT) — A-B-C 3-chamber cycle (5/10/20 min)
• Static mode (CLP) — Constant Low Pressure
• Auto-firm mode (LMP) — time-limited maximum pressure (30 min)
• Transport mode (TM) with memory function and easy disconnection
• Automatic key lock to prevent unintended changes
• Acoustic and visual alarms: low pressure, power failure, service
• AVS — Anti Vibration System for reduced vibration and quiet operation (<23.8 dB)
• START/STOP energy-saving system and memory for set values
• Integrated compressor holder

Technical parameters — MATTRESS
Load capacity: 200 kg
Height: 13 cm
Dimensions: 80/90 x 200 cm
Number of cells: 20 (cell width 10 cm)
Pillow function: 4 head cells without alternation
Micro-ventilation: 6 cells under the hull
CPR valve: quick release, manual
Additional features: integrated power cable fixation system; 4 straps for fixation to the bed
Material: polyurethane
Cleaning: thermal disinfection, washable up to 95°C
Weight: 5.9 kg
Cover: PU, 2-way stretch, waterproof, breathable, fire-retardant, 360° zipper with protective flap

Technical parameters — COMPRESSOR
Type: semi-automatic with LCD
Modes: 4 — alternate / static / auto-firm / transport
Alternate mode: 3-chamber A-B-C air exchange
Time intervals: 5 / 10 / 20 minutes
Alarms: acoustic and visual (low pressure / power failure / service)
Key lock: automatic
Additional functions: memory, START/STOP, AVS
Noise: <23.8 dB
Holder: integrated
Flow rate: 8 l/min
Operating pressure: 25–28 mmHg
Material: ABS housing
Size: 17 x 26 x 12.5 cm
Weight: 3.4 kg

Technical specifications

• Model name: Decu plus
• Load capacity: 200 kg
• Mattress height: 13 cm
• Available dimensions: 80 x 200 cm or 90 x 200 cm
• Number of cells: 20 (head: 4 cells with pillow function)
• Micro-ventilation: 6 cells under the hull
• Cover: PU, 2-way stretch, waterproof, breathable, fire-retardant, washable up to 95°C, 360° zipper with protective flap
• CPR valve: quick release (manual)
• Fixation: integrated power cable fixation system and 4 straps
• Mattress material: polyurethane
• Mattress weight: 5.9 kg
• Compressor: semi-automatic with LCD; modes: alternate / static / auto-firm / transport
• Compressor flow rate: 8 l/min; operating pressure: 25–28 mmHg
• Compressor noise: <23.8 dB; housing material: ABS
• Compressor size: 17 x 26 x 12.5 cm; weight: 3.4 kg
• Safety option: QR safety Quick Release connectors for zero pressure in high-risk areas (option)
