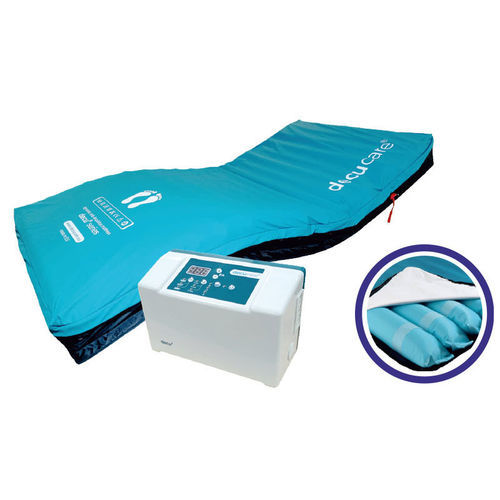

Hospital bed mattress Decu pro

alternating pressureinflatableair-operated

Overview
The Decu pro is an alternating-pressure therapeutic mattress designed for prevention and treatment of pressure ulcers (decubitus) from stage II to IV. It uses a cell-in-cell system with a total height of 20 cm and a maximum load capacity of 220 kg. The system comprises 20 cells, including 5 non-alternating head cells that provide a pillow function and 6 cells with micro-ventilation beneath the torso. Available in widths 80 or 90 cm and length 200 cm. Optional Quick Release connectors enable zero pressure in high-risk areas. The set includes a semi-automatic compressor with automatic pressure adjustment by patient weight and multiple therapy modes.

MATTRESS

• 6 cells under the torso with micro-ventilation to reduce heat and moisture
• 2-way stretch PU cover: waterproof, breathable, fire-retardant
• Cover washable up to 95°C for thermal disinfection
• 360° zipper with perimeter protective flap to reduce contamination risk
• Integrated power-cable fixation system
• 4 straps for secure fixation to the bed frame
• Quick-release CPR valve for emergency deflation
• Optional QR Quick Release connectors for segmental zero-pressure zones
• Optional reinforced hose protection

COMPRESSOR

• Automatic pressure setting according to selected patient weight
• Alternate mode (APT): A-B-C 3-chamber exchange (5/10/20 min intervals)
• Static mode (CLP): Constant Low Pressure
• Auto-firm mode (LMP): Time-limited maximum pressure (30 minutes)
• Transport mode (TM) with memory and easy disconnection
• Automatic key lock to prevent unintended setting changes
• Acoustic and visual alarms: low pressure, power failure, service required
• AVS anti-vibration system for quiet operation (noise under 23.8 dB)
• START/STOP energy-saving function and memory of set values
• Integrated compressor holder

Technical parameters - MATTRESS (table)
Load capacity: 220 kg
Height: 20 cm
Dimensions: 80/90 × 200 cm
Number of cells: 20 (approx. 10 cm cell width)
Pillow function: 5 head cells without alternation
Micro-ventilation: 6 cells under the torso
CPR valve: quick-release, manual
Additional features: integrated power-cable fixation; 4 fixation straps
Material (mattress): polyurethane
Cleaning: thermal disinfection (washable to 95°C)
Weight: 6.9 kg
Cover: PU, 2-way stretch, waterproof, breathable, fire-retardant, 95°C washable, 360° zipper with protective flap

Technical parameters - COMPRESSOR (table)
Type: semi-automatic with LCD
Modes: 4 — alternate / static / auto-firm / transport
Alternate mode: 3-chamber A-B-C exchange system
Time interval: 5 / 10 / 20 minutes
Alarms: acoustic and visual (low pressure / power failure / service)
Key lock: automatic
Additional functions: memory, START/STOP, AVS
Noise: under 23.8 dB
Holder: integrated
Flow rate: 8 l/min
Operating pressure: 25–94 mmHg
Material (compressor): ABS housing
Size: 17 × 26 × 12.5 cm
Weight: 3.4 kg

Specifications

• Model name: Decu pro
• Load capacity: 220 kg
• Mattress height: 20 cm
• Available sizes: 80 or 90 × 200 cm
• Number of cells: 20 (cell width approx. 10 cm)
• Pillow function: 5 non-alternating head cells
• Micro-ventilation: 6 cells under the torso
• Cover: PU, 2-way stretch, waterproof, breathable, fire-retardant, washable to 95°C, 360° zipper with protective flap
• Mattress material: polyurethane
• Mattress weight: 6.9 kg
• Compressor: semi-automatic with LCD; flow rate 8 l/min; operating pressure 25–94 mmHg; size 17 × 26 × 12.5 cm; weight 3.4 kg
• Compressor modes: alternate (A-B-C), static (CLP), auto-firm (LMP), transport (TM)
• Alarms: acoustic and visual (low pressure, power failure, service)
• Options / extras: Quick Release connectors, CPR quick-release valve, integrated power-cable fixation, integrated compressor holder, memory, START/STOP, AVS
