Hospital bed mattress overlay Decu neo

foamhybridair-operated

Product overview

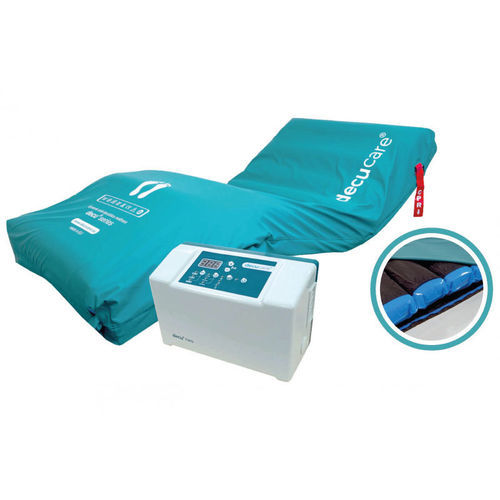

The Decu neo is a hybrid air-foam replacement mattress designed for prevention and treatment of pressure ulcers up to grade IV. The low-pressure air system combined with an integrated passive foam layer delivers continuous pressure redistribution while preserving bed side function due to the low total height (12 cm). The mattress supports patients up to 250 kg and can be used immediately without initial inflation for fast acute admission.

Mattress features

• 10 flat air cells for even weight distribution
• 1 head cell with pillow function (non-alternating)
• 3 torso cells with micro-ventilation to reduce heat and humidity
• Double-layer elastic cover: waterproof, breathable and flame-retardant
• Cover washable at 95°C for thermal disinfection
• Full-length 360° zipper with protective flap against contamination
• Integrated power cord retention system
• 6 fastening straps for secure attachment to the bed
• Quick-release CPR valve for emergency deflation
• Reinforced edges to aid patient standing and provide caregiver support

Optional mattress accessories

• QR (Quick Release) connectors for rapid cell disconnection and achieving zero pressure in targeted areas
• Enhanced base protection for increased durability

Compressor features

• Semi-automatic compressor with LCD; automatic pressure adjustment by entered patient weight
• Alternating mode (APT) — A-B-C alternating pressure therapy (cycles: 5 / 10 / 20 min)
• Static mode (CLP) — constant low pressure across all cells
• Lifted mode (LMP) — time-limited maximum pressure (30 min)
• Transport mode (TM) — memory function for easy disconnection and unlimited transport time
• Automatic key lock to prevent unintentional changes
• Acoustic and visual alarms: low pressure, power failure, service required
• AVS (Anti Vibration System) for reduced vibration and quiet operation (noise < 23.8 dB)
• START/STOP system for energy saving
• Memory function to store set values
• Integrated compressor holder

Technical specifications

• Mattress load capacity: 250 kg
• Mattress height: 12 cm
• Dimensions: 80/90 x 200 cm
• Number of cells: 10 flat cells — cell width approx. 20 cm
• Pillow function: 1 head cell without alternation
• Micro-ventilation: 3 torso cells
• CPR valve: quick-release, manual
• Fixation: integrated power cable retention system; 6 straps for bed attachment
• Material (core): polyurethane foam
• Cover: PU, 2-way stretch, waterproof, breathable, flame-retardant, washable at 95°C, 360° zipper with flap
• Mattress weight: approx. 12 kg
• Compressor type: semi-automatic with LCD
• Compressor modes: 4 (alternating / static / auto-firm / transport)
• Alternating system: 3-chamber A-B-C exchange
• Time intervals: 5 / 10 / 20 minutes
• Alarms: acoustic and visual (low pressure / power failure / service)
• Key lock: automatic
• Additional compressor functions: memory, START/STOP, AVS
• Noise level: <23.8 dB
• Compressor flow rate: 8 l/min
• Operating pressure range: 5–34 mmHg
• Compressor housing: ABS
• Compressor dimensions: 17 x 26 x 12.5 cm
• Compressor weight: 3.4 kg
