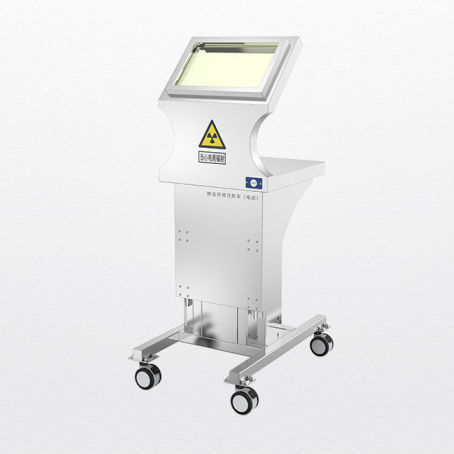

X-ray radiation shielding screen

mobilewith window

Product Introduction
The mobile injection shielding cart combines an L-shaped lead radiation shield with a 304 stainless steel injection trolley to protect staff during radiological injections and interventional procedures. It is designed for easy positioning next to the patient and for use in radiology, interventional suites and oncology departments.

Product Performance

• Pull-out stainless steel drawer for secure storage of syringes and disposables
• Locking, load-bearing universal casters for stable mobility and positioning
• Rechargeable LED lighting for targeted illumination during procedures
• Integrated lead waste bin with 20 mm Pb shielding for safe radioactive waste handling
• L-type lead glass window for operator visibility while maintaining protection

Technical Parameters
Material: lead, lead glass, 304 stainless steel
Protective screen size: 420 mm (W) x 450 mm (L) x 490 mm (H)
Lead shielding thickness: 20 mm Pb
Lead window size: 200 mm (W) x 250 mm (L) x 50 mm (D)
Injection cart overall size: 440 mm (W) x 570 mm (L) x 1200 mm (H)

Application Fields

• Department of Radiology: Imaging diagnosis and interventional therapy using X-rays and other ionizing radiation to assess anatomy, function and pathology
• Department of Radiation Oncology: Localized cancer treatment with ionizing radiation sources for therapeutic procedures
• Department of Nuclear Medicine: Diagnostic imaging and therapeutic services using radiopharmaceuticals, plus research and teaching

Specifications

• Material: lead, lead glass, 304 stainless steel
• Protective screen size: 420 mm x 450 mm x 490 mm
• Lead shielding thickness: 20 mm Pb
• Lead window size: 200 mm x 250 mm x 50 mm (depth)
• Injection cart size: 440 mm x 570 mm x 1200 mm
• Features: pull-out stainless steel drawer; locking load-bearing universal casters; rechargeable lighting; integrated lead waste bin
