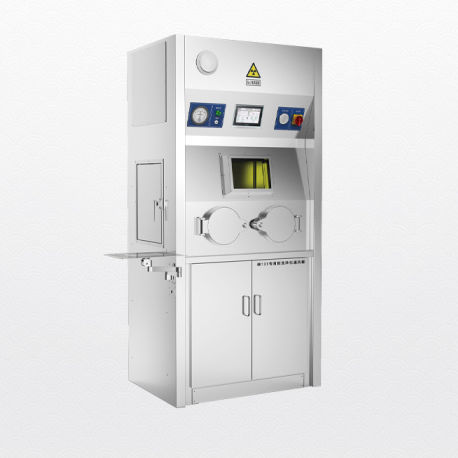

Nuclear medicine shielded cell

medicalfor radiopharmacyfor research

Product overview
The shielded hot cell is designed for automated and manual packaging and manipulation of I-131 radiopharmaceuticals. It integrates an AI human–machine interaction control platform for non-contact control of lighting, sterilization, negative-pressure ventilation, drug lifting platform, power sockets and door interlock, reducing operator exposure and improving process safety.

Key features

• R15 radius internal corners for smooth, easy-to-clean surfaces.
• Inner liner in 304 mirror stainless steel, 2.0 mm thickness, continuously welded.
• Two front access ports with lockable protective covers for safe manual operations.
• Electric lifting drug lead tank to reduce close contact time with radioactive materials.
• Activity well with height-adjustable lifting platform for the ionization chamber of the activity meter.
• Real-time internal radiation dose display and safety interlock with high-dose warning.
• Touchscreen electronic control for integrated management of lighting, activity meter power and fan.

Technical parameters
Noise: below 50 dB
Air velocity: >1.2 m/sec
Power supply: 220V 50Hz 10A
Overall dimensions: 1050 mm (W) x 750 mm (D) x 2200 mm (H)
Inner liner size: 840 mm (W) x 540 mm (D) x 540 mm (H)

Applications

• Radiology departments: Imaging and interventional workflows requiring shielding and controlled handling of radioactive materials.
• Radiation oncology departments: Localized therapeutic preparation and handling of radiopharmaceuticals.
• Nuclear medicine departments: Diagnostic and therapeutic use of radioisotopes, including preparation, dispensing and research workflows.

Specifications and notes

• Corner radius: R15
• Inner liner: 304 mirror stainless steel, 2.0 mm
• Access ports: two front ports with lockable protective covers
• Drug lead tank: electric lifting device
• Activity well: lifting platform for ionization chamber adjustment
• Controls: touchscreen and AI HMI platform for non-contact control
• Safety: real-time dose display, interlocks and high-dose alarm
• Noise level: <50 dB
• Air velocity: >1.2 m/sec
• Power: 220V 50Hz 10A
• Overall dim.: 1050 mm x 750 mm x 2200 mm
• Inner liner size: 840 mm x 540 mm x 540 mm
