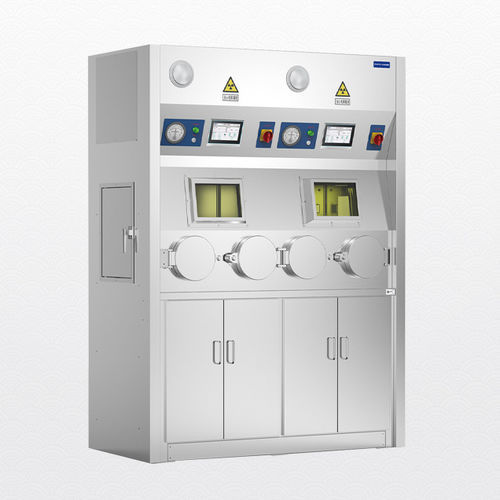

Nuclear medicine shielded cell

for SPECTfor radiopharmacynoise-reduction

Product Introduction
The work area is designed for SPECT radionuclide elution and radiolabeling workflows and is qualified to Class A (C+A) purification. An intelligent AI human–machine interaction control platform enables non‑contact operation of fume hood functions including lighting, sterilization, negative‑pressure ventilation, reagent lifting platform, power sockets, and door interlock.

Product Performance

• The four front operation hand ports provide equivalent 20mmPb shielding and include protective covers with locking mechanisms.
• Interior corners are finished with R15 radii for a smooth, easy‑to‑clean surface.
• Inner liner is welded 304 mirror stainless steel, 2.0 mm thickness.
• Automatic conveying system for molybdenum‑technetium generator handling.
• Activity well fitted with a motorized lifting platform to adjust the ionization chamber height of the activity meter.
• Real‑time internal radiation dose monitoring with safety interlocks and high‑dose alarms.
• Seamless compatibility with CRC series and domestic activity meters for real‑time reading.
• Operational noise below 50 dB and airflow >1.2 m/s ensuring a controlled environment.

Technical Parameters

• External dimensions: W1800 × D750 × H2200 mm
• Inner dimensions: W1490 × D540 × H505 mm
• Protective shielding: 20 mmPb (front, sides, bottom); 10 mmPb (other surfaces)
• Noise level: <50 dB
• Airflow speed: >1.2 m/sec
• Power supply: 220 V 50 Hz 10 A

Application Fields

• Radiology Departments: imaging and interventional workflows using X‑rays and gamma radiation for diagnostic imaging.
• Radiation Oncology Departments: localized therapeutic applications using ionizing radiation sources and particle beams.
• Nuclear Medicine Departments: diagnostic imaging and therapeutic procedures based on nuclear medicine techniques, including radiopharmacy operations.

Key Specifications

• Class A (C+A) purification level suitable for SPECT radionuclide elution and labeling
• AI human–machine interaction platform for touchless control (lighting, sterilization, negative‑pressure ventilation, reagent lift, sockets, door interlock)
• Front hand ports equivalent to 20 mmPb with protective covers and locks
• R15 inner radiused corners and welded 304 mirror stainless steel liner (2.0 mm)
• Automatic molybdenum‑technetium generator conveying and activity well with height‑adjustable lifting platform
• Real‑time radiation dose display, safety interlock and high‑dose warning
• Compatibility with CRC series and domestic activity meters for live readings
