Medical shielded cell

for hospitalsfor nuclear medicinefor radiopharmacy

Product Introduction

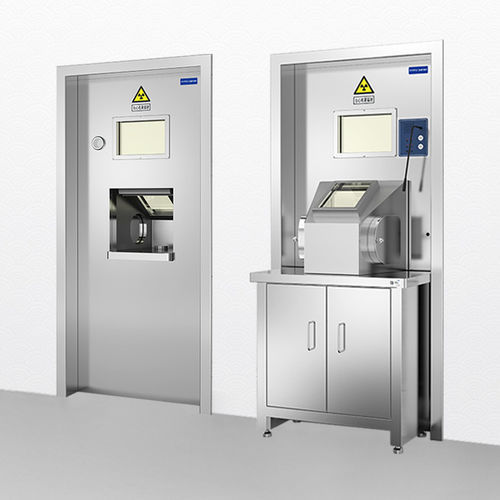

The integrated injection and protection station combines injection, radiation protection, lighting, sterilization and voice announcement functions to support safe, hygienic radiopharmaceutical administration for PET/SPECT and PET‑MRI patients. The central working area features a front lead‑glass viewing window and two operator hand ports for through‑wall manipulation, allowing observation and interaction while minimizing staff exposure.

Product Performance

• Lead shielding engineered to meet ICRP radiation safety standards, minimizing occupational dose during injections.
• Complete protection and isolation between operator and patient with controlled access to the working area, preserving aseptic conditions.
• Through‑wall stainless steel construction with five‑sided protection of the injection surface; side hand ports include shielding covers to maintain protection when not in use.

Technical Parameters
Front shielding: 50 mm Pb (customizable)
Protective screen size: 900 mm (W) x 1800 mm (H)
Viewing window size: 200 x 300 x 10 mm Pb
Injection window size: 200 mm x 250 mm x 50 mm Pb
Standard configuration: illumination lamp, UV lamp, socket switch, announcement system
Options: activity well, lead waste collection box, lead waste bin

Application Fields

• Nuclear Medicine departments for radiopharmaceutical administration and hybrid imaging (PET‑CT, SPECT‑CT, PET‑MRI).
• Radiology departments performing procedures that require localized radioprotection during contrast or tracer administration.
• Radiation oncology units where radiopharmaceutical handling and protected injection workflows are needed.

Technical Specifications

• Main functions: injection, radiation protection, lighting, sterilization, voice announcement.
• Working area: central position with front lead‑glass viewing window and two operator hand ports.
• Front shielding: 50 mm Pb (customizable).
• Protective screen dimensions: 900 mm (W) x 1800 mm (H).
• Viewing window: 200 x 300 x 10 mm Pb.
• Injection window: 200 mm x 250 mm x 50 mm Pb.
• Standard equipment: illumination lamp, UV lamp, socket switch, announcement system.
• Optional accessories: activity well, lead waste collection box, lead waste bin.
