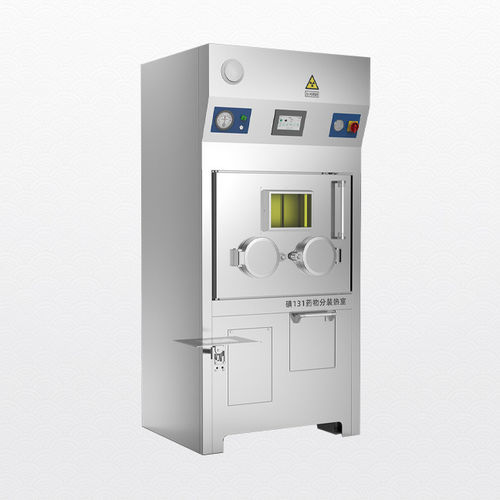

Nuclear medicine shielded cell

for hospitalsfor radiopharmacyfor pharmaceutical packaging

Product Introduction
Used for process protection during automatic and manual packaging operations of I‑131 radionuclide iodine. Supports automatic and manual dispensing modes; when automatic dispensing is unavailable, manually dispensed doses can be transferred to the medication window. Includes a built‑in sliding tray and dedicated slide rail for safe transfer.

Product Performance

• Internal lighting and sterilization devices integrated into the cabinet.
• Front equipped with two operator access ports and a protective cover with locking mechanism.
• High‑lead glass observation window on the front, matched to the cabinet's shielding capability.
• Electric lifting device for the drug lead tank to reduce operator physical strain and minimize close contact time with radioactive drugs.
• Radiation monitoring probes for real‑time dose monitoring inside the cabinet environment.
• Inner liner welded from 2.0 mm thick 304 mirror stainless steel with weld‑free surface treatment and R16 rounded corners.

Technical Parameters
External dimensions: 1100 mm (W) × 900 mm (D) × 2300 mm (H). Protective shielding: front and bottom 50 mm Pb; other surfaces 30 mm Pb. Activity meter ionization chamber protective well: ≥ 50 mm Pb. Exhaust system: fan rated exhaust ≥ 1200 m³/h; air velocity at front hole ≥ 1 m/s.

Application Fields

• Department of Radiology: Imaging diagnosis and interventional therapy using X‑rays and gamma rays for anatomical and functional assessment.
• Department of Radiation Oncology: Localized cancer treatment using ionizing radiation from radioactive isotopes and therapeutic beams.
• Department of Nuclear Medicine: Diagnostic and therapeutic services using nuclear science techniques, integrating imaging, therapy, research and teaching.

Technical Specifications

• External dimensions: 1100 mm (W) × 900 mm (D) × 2300 mm (H)
• Protective shielding thickness: front & bottom 50 mm Pb; other surfaces 30 mm Pb
• Activity meter ionization chamber protective well: ≥ 50 mm Pb
• Exhaust system: fan rated exhaust ≥ 1200 m³/h; air velocity at front hole ≥ 1 m/s
• Operation modes: automatic and manual dispensing; manual transfer to medication window when required
• Built‑in sliding tray and dedicated slide rail for transfer
• Interior equipment: lighting and sterilization devices
• Access: two front operator access ports with protective cover and locking mechanism
• Observation: high‑lead glass observation window matched to cabinet shielding
• Ergonomics: electric lifting device for drug lead tank to reduce staff close‑contact time
• Safety monitoring: radiation probes for real‑time dose monitoring
• Interior construction: 2.0 mm thick 304 mirror stainless steel inner liner, weld‑free surface treatment, R16 rounded corners
