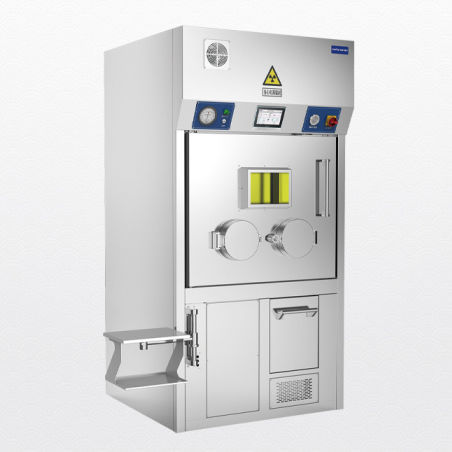

Hospital shielded cell

for radioisotope preparationfor nuclear medicinedispensing

Product Introduction
Used for process protection in automatic and manual packaging operations of I-131 radionuclide iodine. Supports both manual and automatic dispensing modes; when automatic dispensing is unavailable the system allows transfer of manually prepared doses to the dispensing window via an integrated sliding tray and dedicated guide rail. The unit is equipped with a lead-glass observation window and a lockable protective cover for operator safety.

Product Performance

• Integrated lighting and sterilization/UV devices inside the cabinet.
• Front panel with two operating access ports and a lockable protective cover.
• High-density lead glass observation window matching cabinet shielding performance.
• Electric lifting mechanism for the drug lead tank to reduce operator contact time with radioactive materials.
• Built-in radiation monitoring probes for real-time dose monitoring within the cabinet environment.
• Inner liner fabricated from 2.0 mm 304 mirror stainless steel with polished, weld-free surface treatment and R16 rounded corners.

Technical Parameters
External dimensions: 1100mm (W) x 900mm (D) x 2300mm (H)
Protective shielding: 50mm Pb for front and bottom; 30mm Pb for other surfaces
Activity meter ionization chamber well protection: ≥50mm Pb
Exhaust system: fan nominal exhaust ≥1200 m3/h; air velocity at front ports ≥1 m/s

Application Fields

• Radiology Department — Imaging and interventional procedures using X-rays, gamma rays and other radiation for anatomical and functional evaluation.
• Radiation Oncology Department — Localized cancer therapy using ionizing radiation from sealed sources or external beam units.
• Nuclear Medicine Department — Diagnostic and therapeutic services using radiopharmaceuticals, integrating imaging, therapy and research.

Specifications

• External dimensions: 1100mm (W) x 900mm (D) x 2300mm (H)
• Shielding: 50mm Pb (front and bottom), 30mm Pb (other surfaces)
• Ionization chamber well: ≥50mm Pb
• Exhaust: fan flow ≥1200 m3/h; front port air velocity ≥1 m/s
• Observation: high-density lead glass window matching cabinet shielding
• Mechanics: electric lift for drug tank, integrated sliding tray and dedicated rail
• Internal surfaces: 2.0 mm 304 mirror stainless steel liner, polished welds, R16 corners
• Safety: front access ports with lockable protective covers
• Radiation control: real-time radiation monitoring probes
• Accessories: integrated lighting and sterilization units
