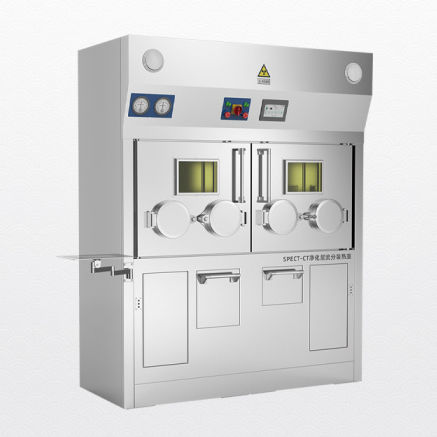

SPECT shielded cell

for hospitalsfor radioisotope preparationfor nuclear medicine

Product Introduction
Used for process protection in automatic and manual dispensing operations of SPECT radionuclides. Equipped with an intelligent AI human-machine interaction control platform allowing non-contact intelligent control of lighting, sterilization, negative pressure ventilation, drug lifting platform, power sockets and fume hood door interlocking.

Product Performance

• The work area meets Class A (ISO 100) purification standards.
• Front side equipped with a high-lead glass observation window matched to the cabinet's shielding performance.
• Four operating access holes with protective covers and locking mechanisms.
• Front-opening acrylic protective door and sealed gloves for material handling.
• Equipped with radiation monitoring probes for real-time monitoring of environmental radiation dose inside the cabinet.
• Integrated human–machine interface providing real-time display of internal radiation dose levels and safety interlocks.
• Accessories include lighting lamp, ultraviolet lamp, ozone sterilization device and power outlets.
• Equipped with a lifting device for the protective lead box to reduce secondary radiation contamination.

Technical Parameters
Overall dimensions: 1700mm (W) x 900mm (D) x 2300mm (H)
Protective shielding: 20mm Pb for the front and bottom; 10mm Pb for other surfaces
Power exhaust filtration system: fan rated exhaust air volume ≥1200 m³/h
Front hole wind speed: ≥1 m/s
Operating hand holes: protection equivalent to 20mm Pb; protective covers with locks

Application Fields

• Department of Radiology: Suitable for imaging and diagnostic workflows requiring radiopharmaceutical dispensing protection.
• Department of Radiation Oncology: Suitable for localized therapeutic modalities using ionizing radiation requiring secure dispensing and shielding.
• Department of Nuclear Medicine: Applicable to nuclear medicine procedures that use radiopharmaceuticals for imaging and therapy.

Technical Specifications

• Work area purification standard: Class A (ISO 100).
• Observation window: High-lead glass matched to cabinet shielding.
• Shielding thickness: 20mm Pb (front & bottom); 10mm Pb (other surfaces).
• Overall dimensions: 1700mm (W) x 900mm (D) x 2300mm (H).
• Exhaust filtration: fan rated ≥1200 m³/h.
• Front hole wind speed: ≥1 m/s.
• Operating hand holes: protection equivalent to 20mm Pb; protective covers with locks.
• Controls: AI human–machine interaction platform for non-contact control of lighting, sterilization, negative pressure, lifting platform, sockets and door interlock.
• Monitoring: Real-time internal radiation dose monitoring and safety interlocks.
• Accessories: lighting lamp, UV lamp, ozone sterilization device, power outlets.
• Additional: lifting device for protective lead box to reduce secondary radiation contamination.
