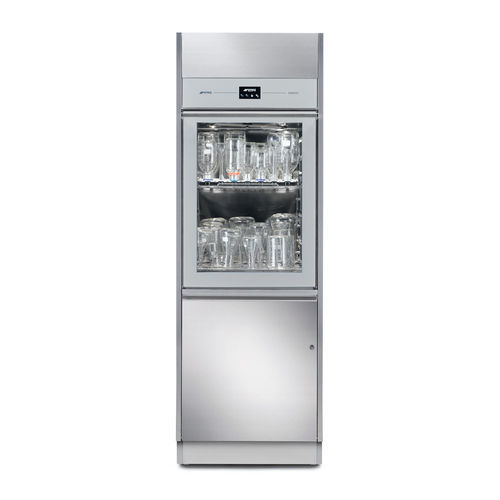

Automatic glassware washer GW6010ML

laboratoryspraywater-based detergent

Overview
The GW6010ML glassware washer by Smeg is a high-capacity cleaning solution for laboratories and life-science facilities. It features a colour TFT touch display on both sides, 20 preset programmes and 20 fully customisable programmes, a stainless-steel AISI 316L wash chamber and forced hot-air drying for validated cleaning cycles.

Highlights

• Dual-sided colour TFT touch display for intuitive operation
• 20 preset programmes and 20 user-modifiable programmes
• Large detergent compartment for three 5 L canisters plus one 1 L canister
• Two peristaltic pumps supplied for automatic dosing; up to two additional pumps can be added
• Flexible loading options with multiple trolley configurations for long-neck glassware, pipettes, test tubes and large vessels
• Double drop-down door design to minimise cross-contamination between dirty and clean areas
• USB port for data recording and PC connection for diagnostics and cycle customisation

Technical Features

• Type: High-capacity glassware washer
• Working temperature: up to 95 °C
• Washing levels: up to 5
• Drying: Forced hot-air drying system
• HEPA filter: Optional
• Door: 1 glass drop-down door (double drop-down design)
• Washer chamber material: AISI 316L
• External material: AISI 304
• Chamber with rails: Yes

Programs & Interface

• Standard stored programmes: 20
• Modifiable programmes: 20
• Program editing: Yes
• Electronic control and alarm indicator on display
• Remaining time and end-of-cycle indicators
• Traceability: last 300 executed programmes
• Cycle archive available; cycle download optional via LAN or available via USB drive
• Display languages: Italian, English, German, French, Portuguese, Russian

Electrical connection

• Electrical connection: 3N AC 400V - 50Hz
• Convertible to three-phase without neutral: Yes
• 60 Hz option: Yes, on request

Hydraulic connection

• Cold water connection: Yes
• Hot water connection: Yes
• Demineralized water connection: Yes
• Drain pump: Yes (only with wall drain)
• Booster pump for demineralized water: Optional

Equipments & Options

• Detergent compartment: capacity for 3 × 5 L canisters + 1 × 1 L canister
• Peristaltic pumps: dosing pump for neutraliser and detergent included; additional pumps optional (up to 2)
• Optional peristaltic pumps for caustic soda and defoamer
• Chemicals dosing systems: Optional
• Detergent level sensor: Optional
• Steam condenser, water softener, LED chamber lighting: Optional
• Conductivity sensor, spray-arm rotation control, wastewater separation valve, probe passage hole for validation: Optional

Also available / Versions

• GW610MLX — version with stainless-steel door

Logistic information
Product dimensions (WxDxH mm): 650 x 720 x 1950

Optional Accessories (examples shown on product page)

• INS28U4140R – accessory configuration for specific washing functions
• INS28U6260R – accessory configuration for specific washing functions

Technical specifications

• Model: GW6010ML
• Brand: Smeg
• Type: High-capacity glassware washer
• Working temperature: up to 95 °C
• Washing levels: up to 5
• Drying: Forced hot-air drying
• Chamber material: AISI 316L
• External material: AISI 304
• Door: 1 glass drop-down door (double drop-down)
• Electrical: 3N AC 400V - 50Hz (convertible to three-phase without neutral)
• Traceability and archive: last 300 executed programmes, Cycle Archive
• Programs: 20 standard + 20 modifiable; program editing enabled
• Data recording: USB input; optional LAN for cycle download
• Dimensions (WxDxH mm): 650 x 720 x 1950
