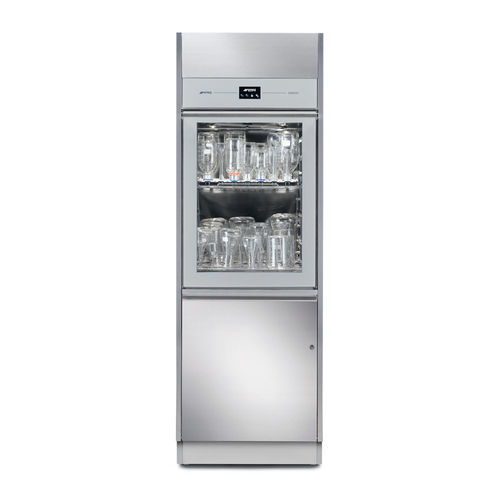

Automatic glassware washer GW6010L

R&Dlaboratorywater

Overview
Large-capacity glassware washer designed for laboratory and life-science applications. Features two hinged doors to separate dirty and clean areas, wide loading flexibility and a spacious detergent compartment with automatic dosing.

Highlights
Color touch display
TFT color touch display on both sides for intuitive operation; includes 20 preset programs and 20 fully customizable programs.

Detergent compartment
Large detergent compartment: space for 3 x 5 L containers and 1 x 1 L container; equipped with 2 peristaltic pumps for automatic dosing; option to install up to 2 additional pumps.

Load flexibility
Wide range of trolley configurations to accommodate various glassware types: long-neck glassware, pipettes, test tubes and large glassware; dual-door design to prevent cross-contamination.

Data logging
USB input for laboratory data logging and PC connection via software for diagnostics, cycle customization and detailed data analysis.

Options and accessories

• Multiple racks and inserts for glassware (e.g. CLB310UNIV, INSPLAV10, INS28U6260, INS12U4180DV, INS56U4140, INSLP28U4140, INSKP200)
• Additional peristaltic pumps, HEPA filters, steam condenser, water softener, conductivity sensor, detergent level sensor, discharge separation solenoid valve, probe passage port for validation

Technical specifications

• Type: Large-capacity glassware washer
• Model: GW6010L
• Operating temperature: up to 95 °C
• Wash levels: up to 5
• Drying system: forced hot air drying (yes)
• HEPA filter: optional
• Doors: 2, hinged glass
• Wash chamber material: AISI 316L
• External casing material: AISI 304
• Product dimensions (W x D x H mm): 650 x 720 x 1950
• Standard programs stored: 20
• Customizable programs: 20 (modifiable: yes)
• Traceability: last 300 executed programs
• Cycle archiving: yes
• Display languages available: IT, EN, DE, FR, PT, RU
• Archive download: optional via LAN / yes via USB key
• Electrical connection: 3N AC 400V - 50Hz (convertible to three-phase without neutral: yes)
• 60 Hz option: available on request
• Plug: no
• Cold water connection: yes
• Hot water connection: yes
• Demineralized water connection: yes
• Drain pump: yes, only for wall discharge
• Booster pump for demineralized water: optional
• Detergent compartment: yes (for 3 x 5 L and 1 x 1 L)
• Standard peristaltic pumps: dosing for liquid neutraliser and liquid detergent (yes); caustic and antifoam pumps: optional
• Possibility to install additional peristaltic pumps: yes, max 2
• Also available in version GW6010LX (steel doors)
