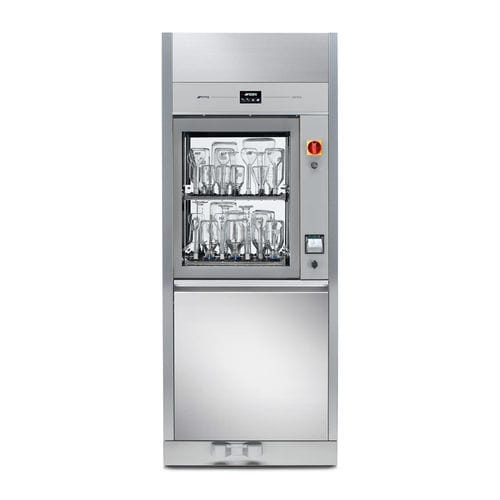

Automatic glassware washer GW7010

laboratorywaterspray

Overview
The GW7010 is a high-capacity glassware washer designed for laboratory and life-science applications. It features a colour TFT touch display on both sides for intuitive operation, offering 20 preset and 20 fully customisable programmes. A large detergent compartment and multiple trolley configurations provide flexible loading for a wide range of laboratory glassware.

Highlights

• Colour TFT touch display with intuitive interface (20 preset + 20 customisable programmes)
• Large detergent compartment for multiple canisters with automatic dosing (peristaltic pumps)
• Maximum loading flexibility with a wide choice of trolley configurations for long/narrow-necked glassware, pipettes, test tubes and large glassware
• Double sliding door to prevent cross-contamination between dirty and clean environments

Features

• Type: High-capacity glassware washer
• Working temperature: up to 95 °C
• Washing levels: up to 5
• Forced hot-air drying system: Yes
• HEPA filter: Optional
• Door: 2 glass sliding doors
• Washer chamber material: AISI 316L

Detergent compartment & dosing
The machine is equipped with a large detergent compartment. It can accommodate up to four 5-litre canisters and one 1-litre canister (product documentation also indicates configurations for 3 x 5 L + 1 x 1 L). Two peristaltic pumps are supplied for automatic dosing with the possibility to install up to two additional pumps.

Interface & Traceability

• Electronic control with alarm indicator on the display
• Remaining duration and end-of-cycle indicators
• Traceability: last 300 executed programs
• Cycle Archive: Yes
• Set of display languages: IT, EN, DE, FR, PT, RU
• Download cycle archive: Optional via LAN / Yes via USB pen drive

Programs

• Standard programs stored: 20
• Modifiable programs: 20
• Program editing: Yes

Hydraulic & Electrical Connections

• Cold water connection: Yes
• Hot water connection: Yes
• Deionized/demi water connection: Yes
• Drain pump: Yes (only with wall drain)
• Booster pump for demineralized water: Optional
• Electrical connection: 3N AC 400V - 50Hz
• Convertible to tri-phase without neutral: Yes
• 60 Hz possibility: Yes, on demand
• Plug: Not present

Construction & Equipment

• External material: AISI 304
• Washer chamber material: AISI 316L
• Detergent compartment: Yes (see capacity details)
• Peristaltic pump for dosing neutraliser: Yes
• Peristaltic pump for dosing liquid detergent: Yes
• Peristaltic pump for caustic soda: Optional
• Peristaltic pump for defoamer: Optional
• Possibility to install additional peristaltic pumps: Yes, up to 2
• Chemicals dosing: Optional
• Detergent level sensor: Optional
• Steam condenser: Optional
• Water softener: Optional
• LED lighting in the washing chamber: Optional
• Conductivity sensor: Optional
• Spray arms rotation control: Optional
• Waste water separation solenoid valve: Optional
• Probe passage hole for validation: Optional

Also available

• Available versions: GW7010M – Single door version

Technical specifications

• Model: GW7010
• Type: High-capacity glassware washer
• Working temperature: up to 95 °C
• Washing levels: up to 5
• Forced hot-air drying system: Yes
• HEPA filter: Optional
• Door: 2 glass sliding doors
• Washer chamber material: AISI 316L
• External material: AISI 304
• Product dimensions (WxDxH mm): 780 x 800 x 1950
• Electrical connection: 3N AC 400V - 50Hz (convertible to tri-phase without neutral)
• 60 Hz possibility: Yes, on demand
• Cold/Hot/Demi water connections: Yes
• Drain pump: Yes (only with wall drain)
• Standard programs stored: 20; Modifiable programs: 20; Program editing: Yes
• Traceability & Cycle Archive: Last 300 executed programs; Cycle Archive available
• Display languages: IT, EN, DE, FR, PT, RU
