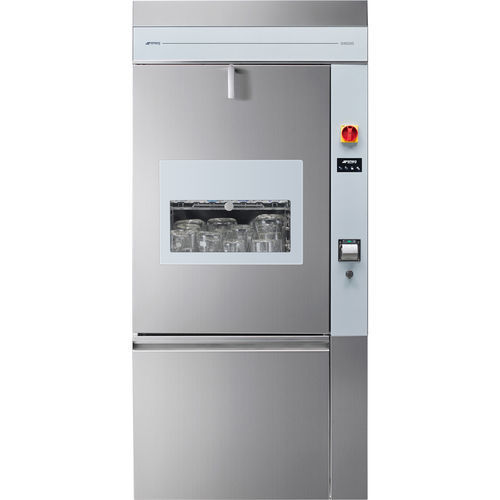

Laboratory glassware washer GW6290DSG
for the pharmaceutical industrywaterair blast

Laboratory glassware washer - GW6290DSG - SMEG Instruments - for the pharmaceutical industry / water / air blast
Laboratory glassware washer - GW6290DSG - SMEG Instruments - for the pharmaceutical industry / water / air blast
Add to favorites
Compare this product
Go to the SMEG Instruments website for more information

Characteristics

Applications
laboratory, for the pharmaceutical industry
Technology
water, air blast, water-based detergent
Other characteristics
high-throughput

Description

Overview
  • High-capacity glassware washer for laboratory and industrial life-science applications
  • Max working temperature: up to 95 °C
  • Washer chamber: AISI 316L; external casing: AISI 304
  • Forced hot-air drying system; stainless steel door with glass porthole
  • Dimensions (WxDxH mm): 900x800x1950


Target
  • Instruments Solutions: Life science
  • Applicable sectors: Laboratory; Pharmaceutical; Petrochemical industry


Type
  • High-capacity glassware washer


Technical Features
  • Working temperature: up to 95 °C
  • Washing levels: up to 3
  • Forced hot-air drying system: Yes
  • HEPA filter: Optional
  • Door: Stainless steel door with glass porthole
  • Washer chamber material: AISI 316L


Programs
  • Standard programs stored: 20
  • Modifiable programs: 20
  • Program editing: Yes


Electrical Connection
  • Electrical connection: 3N AC 400V - 50Hz
  • 60 Hz possibility: Yes, on demand
  • Plug: Not present


Hydraulic Connection
  • Cold water connection: Yes
  • Hot water connection: Yes
  • Demi (demineralized) water connection: Yes
  • Drain pump: Yes
  • Booster pump for demineralized water: Optional


Also available
  • Available version: GW6290DS — solid stainless steel door version


Interface
  • Electronic control: Yes
  • Alarm indicator: Yes, on the display
  • Remaining duration display: Yes
  • End of cycle indicator: Yes
  • Traceability: Last 300 executed programs
  • Cycle archive: Yes
  • Set of display languages: IT (Italiano), EN, DE, FR, PT, RU
  • Download cycle: Optional via LAN / Yes, with USB pen drive


Construction
  • External material of the machine: AISI 304
  • Washer chamber material: AISI 316L
  • Chamber with rails: Yes


Equipments
  • Detergent compartment: Yes, for 4 x 5 litre cans
  • Peristaltic pump for dosing liquid neutraliser: Yes
  • Peristaltic pump for dosing liquid detergent: Yes
  • Peristaltic pump for caustic soda: Optional
  • Peristaltic pump for defoamer: Optional
  • Possibility to install additional peristaltic pumps: Yes, up to 3
  • Chemicals dosing: Optional
  • Detergent level sensor: Optional
  • LED lighting in the washing chamber: Yes
  • Conductivity sensor: Optional
  • Waste water separation solenoid valve: Optional
  • Probe passage hole for validation: Optional


Logistic Information
  • Product dimensions (WxDxH mm): 900x800x1950


Optional Accessories (examples shown)
  • L685 — Washing functions: Various glassware; Nozzle number: 76
  • LM6-5 — Washing functions: Drums; Nozzle number: 5
  • LP6 — Washing functions: Pipettes; Positions: 100


Characteristics / Technical specifications
  • Brand: Smeg
  • Model: GW6290DSG
  • Type: High-capacity glassware washer
  • Working temperature: Up to 95 °C
  • Washing levels: up to 3
  • Forced hot-air drying system: Yes
  • HEPA filter: Optional
  • Door: Stainless steel with glass porthole
  • Washer chamber material: AISI 316L
  • External material: AISI 304
  • Chamber with rails: Yes
  • Detergent compartment capacity: for 4 x 5 litre cans
  • Peristaltic pumps: included for neutraliser and detergent; up to 3 additional optional; pumps for caustic soda and defoamer optional
  • Electronic control, alarms and display: Yes (alarm indicator on display; remaining duration; end of cycle)
  • Traceability / Archive: Last 300 executed programs; Cycle archive available
  • Programs: 20 standard stored, 20 modifiable, program editing available
  • Interface languages: IT, EN, DE, FR, PT, RU
  • Data export: Optional via LAN; available via USB pen drive
  • Electrical connection: 3N AC 400V - 50Hz (60 Hz available on demand)
  • Hydraulic connections: Cold water, Hot water, Demi water; Drain pump included; booster pump optional
  • Chemical dosing and pumps: Compartment for 4 x 5 L cans; peristaltic dosing pumps included/optional as indicated
  • LED lighting in chamber: Yes
  • Dimensions (WxDxH mm): 900x800x1950
