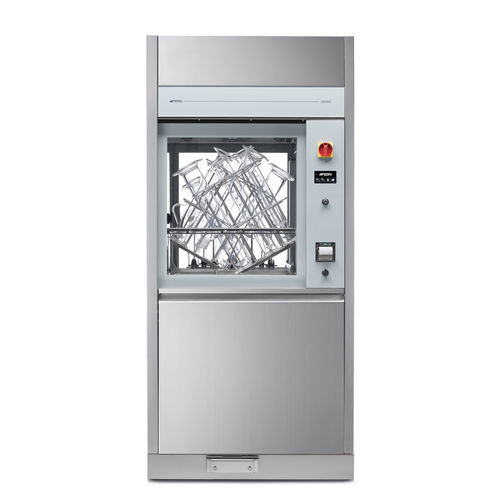

Automatic glassware washer GW7015

for the pharmaceutical industryfor the food industrylaboratory

Application
Soluzioni Instruments: Life science
Life science sectors: Laboratory; Pharmaceutical; Petrochemical; Food industry

Type
Large-capacity glassware washer

Main features

• Operating temperature: Up to 95 °C
• Washing levels: up to 6
• Drying system: forced hot air drying
• HEPA filter: Optional
• Door: 2 sliding glass doors (GW7015M version available with single door)
• Wash chamber material: AISI 316L
• External casing material: AISI 304
• Product dimensions LxDxH (mm): 900 x 1000 x 1942

Programs

• Stored standard programs: 20
• Modifiable programs: 20
• Ability to modify programs: Yes

Electrical connection

• Electrical connection: 3N AC 400V - 50Hz
• Convertible to three-phase without neutral: Yes
• 60 Hz availability: Yes, on request
• Plug: No

Hydraulic connections

• Cold water connection: Yes
• Hot water connection: Yes
• Demineralized water connection: Yes
• Drain pump: Yes, only for wall discharge
• Booster pump for demineralized water: Optional

Interface and traceability

• Electronic control: Yes
• Alarm indicator: Yes, on display
• Remaining time display: Yes
• End-of-cycle indicator: Yes
• Traceability: Last 300 executed programs
• Cycle archiving: Yes
• Display languages selectable: IT (Italian), EN, DE, ES, FR, PT, RU
• Cycle archive download: Optional via LAN port / Yes, via USB stick

Equipment

• Detergent compartment: Yes, 4 canisters of 5 L and 1 of 2 L
• Peristaltic pump for neutralizer dosing: Yes
• Peristaltic pump for liquid detergent dosing: Yes
• Peristaltic pump for caustic soda: Optional
• Peristaltic pump for antifoam: Optional
• Possibility to install additional peristaltic pumps: Yes, max. 3
• Chemical dosing control: Optional
• Detergent level sensor: Optional
• Steam condenser: Optional
• Water softener: Optional
• Tank LED lighting: Optional
• Conductivity sensor: Optional
• Rotation control of spray arms: Optional
• Drain separation solenoid valve: Optional
• Probe passage port for validation: Optional

Available versions
GW7015 (double door) and GW7015M (single-door version)

Options and accessories
Optional accessories and washing inserts available (examples listed on accessories page: CLB315UNIV, INSPLAV15, INS1596U4140, COCI9215 and other supports and baskets for glassware)

Specifications / Technical data

• Type: Large-capacity glassware washer
• Operating temperature: Up to 95 °C
• Washing levels: up to 6
• Drying system: forced hot air
• HEPA filter: Optional
• Door: 2 sliding glass doors (GW7015M version with single door)
• Wash chamber material: AISI 316L
• External casing material: AISI 304
• Dimensions (LxDxH mm): 900 x 1000 x 1942
• Standard programs: 20
• Modifiable programs: 20
• Electronic control with display and alarm indicators
• Traceability: last 300 programs, cycle archiving
• Display languages: IT, EN, DE, ES, FR, PT, RU
• Electrical connection: 3N AC 400V - 50Hz; convertible to three-phase without neutral; 60 Hz on request; plug: No
• Water connections: cold, hot, demineralized
• Drain pump: included if wall discharge; booster for demineralized water optional
• Detergent compartment: 4 canisters of 5 L + 1 of 2 L
• Peristaltic pumps for dosing: neutralizer and detergent included; others optional (caustic soda, antifoam)
• Options: steam condenser, water softener, tank LED lighting, conductivity sensor, spray arm rotation control, drain separation solenoid valve, probe passage port
