Automatic glassware washer GW7015T

laboratorywaterspray

Overview

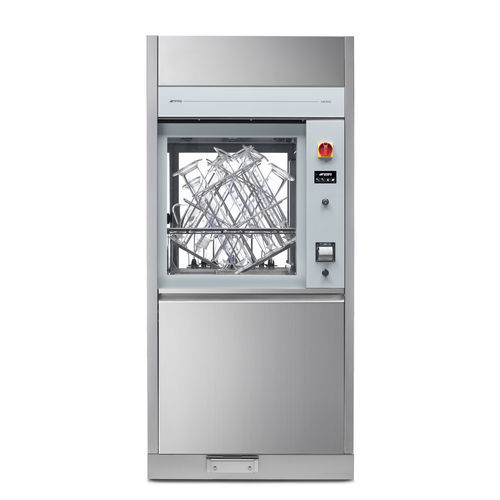

The GW7015T is a high-capacity laboratory glassware washer engineered for life science and laboratory environments. It features a stainless steel AISI 316L washing chamber, double glass sliding doors and configurable trolleys to process long-necked glassware, pipettes, test tubes and large laboratory glassware. The unit integrates a forced hot-air drying system and FAST washing cycles for short-cycle capability.

Touch display
Colour TFT touch displays on both sides ensure intuitive operation and visibility in busy labs. The interface includes 20 preset programmes plus 20 fully customisable programmes for process standardisation and repeatability.

Detergent compartment
Large detergent compartment accepts four 5-litre canisters and one 2-litre canister. Two peristaltic pumps are supplied for automatic dosing; up to three additional pumps can be installed for extended dosing needs.

Maximum loading flexibility
A wide range of trolley configurations supports varied laboratory instrumentation and glassware shapes. Dual sliding doors separate dirty and clean zones to reduce cross-contamination risks during loading and unloading.

Data recording
USB input enables convenient data export. Optional LAN download and PC connectivity via dedicated software support diagnostics, cycle customisation and data analysis for traceability and validation workflows.

Optional and available configurations

• HEPA filter: optional
• Booster pump for demineralized water: optional
• Steam condenser: optional
• Water softener: optional
• Conductivity sensor: optional
• Spray arms rotation control: optional
• Waste water separation solenoid valve: optional
• Probe passage hole for validation: optional
• Available version: GW7015TM (single door version with FAST cycles)

Interface and traceability
Electronic control with alarm and end-of-cycle indicators shown on the display. Remaining time and full cycle archive available. Traceability stores the last 300 executed programmes. Display languages: IT, EN, DE, ES, FR, PT, RU.

Technical specifications

• Model: GW7015T
• Type: High-capacity laboratory glassware washer
• Working temperature: Up to 95 °C
• Washing levels: Up to 6
• Doors: 2 glass sliding doors
• Washing chamber material: AISI 316L
• External material: AISI 304
• Forced hot-air drying system: Yes
• FAST washing cycles: Yes, max. 33 min
• Standard stored programmes: 20
• Modifiable programmes: 20
• Program editing: Yes
• HEPA filter: Optional
• Product dimensions (WxDxH mm): 900 x 1000 x 1942
• Electrical connection: 3N AC 400V - 50Hz
• Convertible to three-phase without neutral: Yes
• 60 Hz possibility: Yes, on demand
• Cold water connection: Yes
• Hot water connection: Yes
• Demineralized water connection: Yes
• Drain pump: Yes (only with wall drain)
• Booster pump for demineralized water: Optional
• Detergent compartment capacity: 4 x 5 L canisters and 1 x 2 L canister
• Peristaltic pumps supplied: 2; additional pumps: up to 3
• Peristaltic pump for neutraliser dosing: Yes
• Peristaltic pump for detergent dosing: Yes
• Peristaltic pump for caustic soda: Optional
• Peristaltic pump for defoamer: Optional
• Detergent level sensor: Optional
• LED lighting in washing chamber: Yes
• Conductivity sensor: Optional
• Spray arms rotation control: Optional
• Waste water separation solenoid valve: Optional
• Probe passage hole for validation: Optional
• Traceability: Last 300 executed programmes
• Cycle archive: Yes
• Data recording: USB input; cycle download optional via LAN or USB pen drive
• Available versions: GW7015TM (single door FAST-cycle version)
