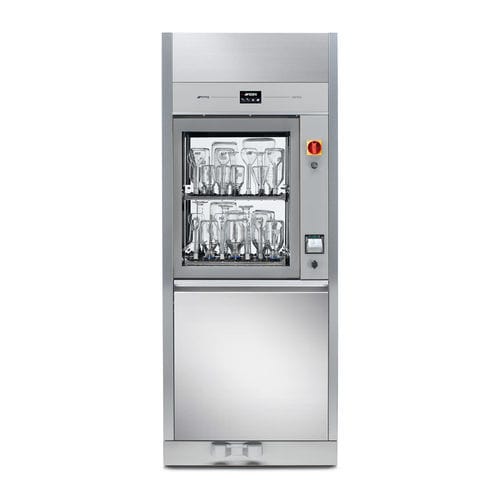

Automatic glassware washer GW7010T

for the food industrylaboratoryfor the pharmaceutical industry

Overview
The GW7010T is a high-capacity glassware washer designed for laboratory and life-science environments. Colour TFT touch displays are fitted on both sides for intuitive daily operation. The interface provides 20 preset and 20 fully customisable programmes and key operational information.

Detergent compartment
The unit includes a large detergent compartment accommodating up to four 5-litre canisters plus one 1-litre canister. Two peristaltic pumps are supplied for automatic dosing, with up to two additional pumps installable.

Maximum loading flexibility
Loading flexibility is achieved via multiple trolley configurations to accommodate long-neck and narrow-neck glassware, pipettes, test tubes and large glassware. Double sliding doors separate dirty and clean zones to reduce cross-contamination.

Programs and Interface

• Standard programs stored: 20
• Modifiable programs: 20
• Program editing: Yes
• FAST washing cycles: Yes, max. 33 min
• Electronic control: Yes
• Alarm indicator: Yes, on the display
• Remaining duration display: Yes
• End of cycle indicator: Yes
• Traceability: Last 300 executed programs
• Cycle Archive: Yes
• Display languages: IT, EN, DE, FR, PT, RU
• Download cycle: Optional via LAN / Yes via USB pen drive

Construction and Materials

• External material: AISI 304
• Washer chamber material: AISI 316L
• LED lighting in the washing chamber: Yes

Electrical and Hydraulic Connections

• Electrical connection: 3N AC 400V - 50Hz (convertible)
• Convertible in tri-phase without neutral: Yes
• 60 Hz: Available on request
• Cold water connection: Yes
• Hot water connection: Yes
• Demi water connection: Yes
• Drain pump: Yes (only with wall drain)
• Booster pump for demineralized water: Optional

Equipment and Options

• Detergent compartment: Yes (capacity for multiple canisters)
• Peristaltic pumps: 2 supplied (neutraliser, detergent); up to 2 additional optional
• Peristaltic pump for caustic soda: Optional
• Peristaltic pump for defoamer: Optional
• Chemicals dosing: Optional
• Detergent level sensor: Optional
• Steam condenser: Optional
• Water softener: Optional
• Conductivity sensor: Optional
• Spray arms rotation control: Optional
• Waste water separation solenoid valve: Optional
• Probe passage hole for validation: Optional
• HEPA filter: Optional

Target sectors

• Life science: Laboratories, Pharmaceutical, Petrochemical, Agro-food

Also available
Available version: GW7010TM – single door version with FAST cycles.

Technical specifications

• Model: GW7010T
• Type: High-capacity glassware washer
• Working temperature: Up to 95 °C
• Washing levels: Up to 5
• Doors: 2, glass sliding (double sliding door)
• Forced hot-air drying: Yes
• HEPA filter: Optional
• FAST washing cycles: Yes, max. 33 min
• Product dimensions (WxDxH mm): 780 x 800 x 1950
• External material: AISI 304
• Washer chamber: AISI 316L
• Electrical connection: 3N AC 400V - 50Hz (convertible); 60 Hz on request
• Hydraulic connections: Cold, hot, demi water
• Drain pump: Yes (only with wall drain)
• Traceability: Last 300 executed programs; cycle archive available
• Program storage: 20 standard + 20 fully customisable
• Detergent handling: Compartment for multiple canisters; 2 peristaltic pumps supplied; up to 2 optional
• Interface: Colour TFT touch display on both sides; electronic control; alarm and cycle indicators
