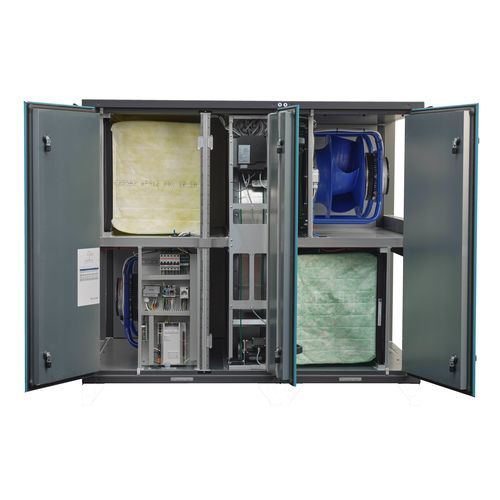

Air conditioning air handling unit Geniox Core

modularcompactrooftop

Overview
Geniox Core air handling units are compact, modular HVAC units designed to deliver high energy performance with a minimal footprint. Units are available for indoor and outdoor installation and can be supplied with an integrated, pre-programmed control system or without controls for on-site wiring.

Key highlights

• Modular standard unit offered in 7 sizes.
• Airflows from 750 to 17,500 m³/h (0.2–4.9 m³/s).
• Suitable for indoor and outdoor installation variants.
• Delivered in multiple sections (knock-down-ready option available) for easier transport and installation in confined spaces.
• Control options: integrated pre-programmed control system or delivered without controls (closed cable entries for on-site wiring).

Installation & flexibility

• Indoor installation: units delivered in 2 or 3 sections to accommodate rotary heat exchangers; dampers and coils can be duct-mounted or close to supply connections.
• Outdoor installation: units can be delivered as single-section roof units with all components inside, or with coils and pipework positioned inside the building to simplify water connections and reduce frost risk.
• Mounting kit included for duct mounting: bolts, screw clamps and sealing.

Performance & components

• Fans: plug fans with air‑foiled blades, single‑inlet free‑blowing design; static efficiency up to 75%; EC motor option (IE5). Impeller and motor are statically and dynamically balanced.
• Heat recovery: rotary heat exchanger variants available for high recovery in a compact form.
• Coils: heating (water or electric), cooling (water or DX) and change‑over coils for water; coils can be duct‑mounted (indoor) or installed inside the AHU (outdoor).
• Heat pump option: integrated reversible heat pump built into a section (R410A). Variants (HP DF and HP) enable year‑round operation with capacity regulation 5–100%.
• Filters: bag filters (large surface) and panel filters. Typical classes: Coarse G4, ePM10 M5, ePM2.5 M6, ePM1 F7/F8/F9 and CITY‑FLO variants.
• Sound attenuators: duct‑mounted (indoor) or AHU‑installed (outdoor) to meet acoustic requirements.

Standards & casing

• Casing assessed in accordance with EN 1886.
• Model box classifications: Deflection D1; Air leakage L1(M); Filter bypass leakage F9; Thermal insulation T2(M); Thermal bridging class (M).
• Panels and doors: corrosion class C5 according to EN ISO 12944‑2:2000.
• Standard casing material: Zinc‑Magnesium (ZM310). Optional pre‑painted finishes (examples: RAL 9005 black, RAL 7024 light grey).

Benefits

• Installation flexibility: compact, short units that fit in limited spaces; dampers and coils may be mounted externally where space allows.
• Indoor or outdoor use: indoor units split into sections for rotary exchangers; outdoor units available as single‑section solutions or with coils placed indoors.
• Fast installation: delivered in multiple sections for quick assembly; simple wiring between sections; bolted and clamped attachments for dampers and coils.
• Control choices: supplied without controls (prepared for installation) or with integrated, pre‑programmed control system accessible via Systemair Access.

User guidance & support

• Knock‑down‑ready version available for transport through narrow spaces (prepared for disassembly and reassembly).
• Extensive installation, commissioning and user manuals provided for Geniox Core models.
• Instructional videos and guides available to support installation, setup and maintenance.

Technical specifications

• Series / Model: Geniox Core
• Product code referenced on page: #G1183
• Airflow range: 750–17,500 m³/h (0.2–4.9 m³/s)
• Available sizes: 7 standard sizes
• Sections: 1 (outdoor) / 2 or 3 (indoor, depending on heat exchanger and options)
• Fans: Plug fans with air‑foiled blades; static efficiency up to 75%; EC motor option (IE5)
• Heat recovery: rotary heat exchanger options; high recovery efficiency
• Heat pump: integrated reversible heat pump option (R410A), variants for heating/cooling and capacity regulation 5–100%
• Heating coils: water or electric
• Cooling coils: water or DX
• Filters: bag filters (e.g. ePM1 F7, F8, F9), panel filters (G4, M5)
• Sound attenuators: available duct‑mounted or AHU‑installed
• Casing: Zinc‑Magnesium ZM310 standard; optional pre‑painted finishes; corrosion class C5
• EN 1886 related classes: Deflection D1; Air leakage L1(M); Filter bypass leakage F9; Thermal insulation T2(M); Thermal bridging class (M)
• Delivery: multiple sections with on‑site assembly; mounting kit included for duct installations
• Installation variants: indoor (2–3 sections) or outdoor (1 section), coils either inside AHU or placed inside building
