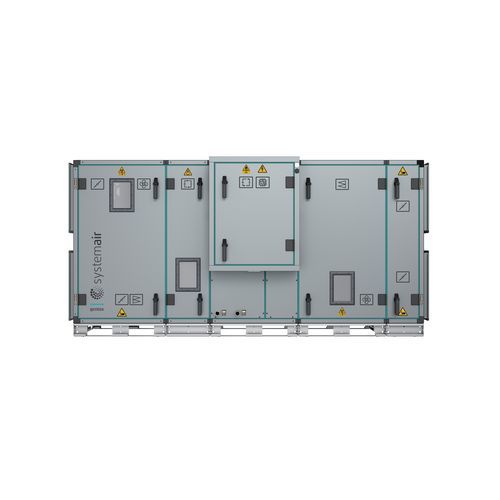

Air conditioning air handling unit Geniox HP DFNmodular
Add to favorites
Compare this product
Characteristics
- Applications
- for air conditioning
- Options
- modular
Description
Presentation
Key features
Benefits
SystemairCAD & Project support
Technical specifications
- Geniox HP DFN is a modular air handling unit with a rotary heat exchanger and an integrated reversible heat pump using natural refrigerant R290.
- Airflow range: 0.26–2.20 m³/s (935–7 900 m³/h).
- Designed for energy-efficient operation with total heat recovery and high COP/EER performance.
Key features
- Available in 4 sizes (10–14; extended range up to size 24 coming soon).
- Airflow range: 0.26–2.20 m³/s (935–7 900 m³/h).
- Integrated reversible heat pump using natural refrigerant R290 (prefilled from factory).
- Energy-efficient rotary heat exchanger and heat pump — total heat recovery efficiency up to 90%.
- High performance: COP up to 16 and EER up to 9.
- Defrost-free operation.
- Automatic safety ventilation system with highly sensitive sensors to detect minimal refrigerant leakages.
- Fits through 900 mm door openings (facilitates transport/installation in sections).
- Flexible installation options: indoor and outdoor.
Benefits
- Future-proof design compliant with F-gas and REACH/PFAS requirements.
- Sustainable refrigerant: R290 with ultra-low GWP (0.02) for very low global warming impact.
- Cost-efficient operation: integrated AHU + heat pump reduces installation complexity and can lower operating costs versus AHU with external heat pump or conventional systems.
- Simplified, safer installation — prefilled refrigerant and factory-tested unit remove the need for on-site refrigerant handling or external condenser work.
SystemairCAD & Project support
- Use SystemairCAD selection software to configure Geniox units, access accurate performance data and export BIM models for CAD tools.
- Software features: integration with Revit, AutoCAD and MagiCAD; automatic performance calculation; documentation for design and tendering; BIM export (DXF/DMR); life cycle cost (LCC) calculations and Ecodesign support.
Technical specifications
- Model / Commercial name: Geniox HP DFN
- Product type: Modular air handling unit with integrated reversible heat pump
- Refrigerant: R290 (natural refrigerant, GWP 0.02) — prefilled from factory
- Airflow range: 0.26–2.20 m³/s (935–7 900 m³/h)
- Sizes available: 10–14 (extended range up to size 24 coming soon)
- Total heat recovery efficiency: up to 90% (rotary heat exchanger + heat pump)
- Performance: COP up to 16; EER up to 9
- Operating temperature range: −22°C to +36°C
- Installation: indoor and outdoor; unit sections sized to fit through 900 mm door openings
- Operation: defrost-free mode; integrated automatic safety ventilation for refrigerant leak detection
- Compliance: designed to meet F-gas regulation limits and PFAS/REACH considerations
- Transport/commissioning: factory-tested, prefilled refrigerant to simplify on-site installation
