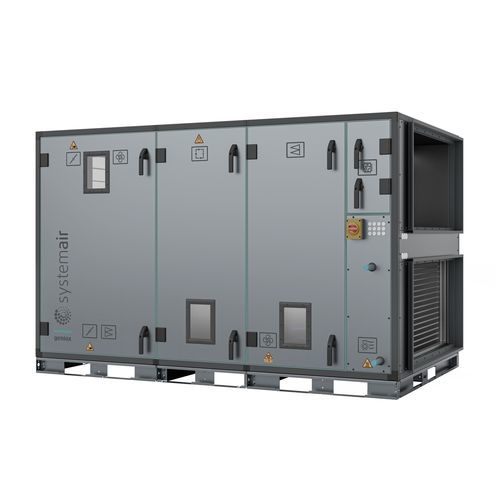

Air conditioning air handling unit Geniox Go

modularcompacthygiene

Product overview
Geniox Go is a preconfigured modular air handling unit delivering excellent performance and energy savings. Compact for transport and installation, it offers configurable internal and external components and is suitable for indoor and outdoor use, including renovation projects.

Key highlights

• Preconfigured, modular AHU with built-in flexibility
• Airflow range for small to large projects (750–48,000 m³/h; typical Ecodesign range available)
• Compact units designed to pass through standard 800 mm door openings
• Multiple heat exchanger options: rotary wheel, counterflow plate, crossflow plate, run-around coils
• Integrated heating and cooling options: electric, hydronic, reversible heat pump, cooling coils
• Designed for energy-efficient operation and long service life

Systemair Access & controls
Systemair Access is the AHU control platform. Key aspects:

• Available with smartphone/tablet app (Access Connect) and NaviPad handheld
• Intuitive menus for configuration and operation
• Modbus communication to internal components to simplify wiring
• Cloud service for monitoring and remote access
• Plug-and-play concept to reduce installation, setup and commissioning time

Heat recovery and exchangers

• Rotary (heat wheel) exchanger: efficient (up to ~87%); available as aluminium rotor, sorption hybrid or sorption variant for high moisture recovery
• Plate exchangers: counterflow (up to ~90% efficiency) or crossflow (up to ~85% efficiency)
• Run-around coil loops for full airflow separation with efficiencies up to ~80%

Fans and airflow

• Direct-driven plug fans with airfoil impellers and rotating diffusers to maximise efficiency
• Fan motor options: EC, PM or AC (IE5 / IE4 / IE3) with static efficiencies up to ~75%
• Fan control options: CAV with airflow control, outdoor-compensated airflow, VAV/pressure control or stepless voltage control

Construction & durability

• Panels and doors designed for mechanical strength and durability
• 60 mm insulation thickness to minimise heat loss and thermal bridges
• Choice of casing materials and surface treatments (pre-painted or ZM310)
• Panels, doors and components designed to achieve corrosion class C5

Indoor air quality & filtration

• Standard panel filter: coarse (G4 / ePM coarse family) pleated filter
• Bag filters available for larger filter area and longer service life
• Optional Deltri+ virucidal filters (ePM1 90%) tested for virus neutralisation (independent lab verification)

Serviceability & lifecycle

• Handles, hinges and inspection windows designed for easy servicing and long life
• Short lead times and fast on-site assembly; delivery as compact sections or with base frame options
• Approximately 95% of materials (steel, aluminium, copper, insulation) are recyclable

Compliance & certifications
Geniox Go is designed and delivered in accordance with relevant directives and certifications and follows Systemair’s #HygienicByDesign principles. Notable third-party certifications are available for the Geniox range (Eurovent certified performance, CE Declaration of Conformity, HygienicByDesign initiative and others).

Technical specifications

• Airflow range: 750 to 48,000 m³/h (typical Ecodesign-compliant range available)
• Speed regulation: stepless
• Heater options: electric, reversible heat pump, hot-water (hydronic) heater or none
• Heat recovery: rotary wheel, counterflow plate, crossflow plate, run-around coil loops
• Exchanger efficiencies (examples): rotary up to ~87%; plate counterflow up to ~90%; plate crossflow up to ~85%; run-around up to ~80%
• Fan type: direct-driven plug fans with airfoil blades; static efficiency up to ~75%
• Fan motor options: EC (IE5), PM (IE4) or AC (IE3)
• Casing: 60 mm insulation; thermal insulation class T2; thermal bridging class TB2; leakage class L1(M); deflection/mechanical strength class D1; corrosion class C5
• Filters: panel (Coarse/G4 equivalent), bag filters (various classes), optional Deltri+ ePM1 90% virucidal filters
• Installation type: horizontal (base frame options, full-length or sectional)
• Supply side: left or right configuration available
• Dimensions: size-dependent; multiple size options — final dimensions calculated with SystemairCAD (height values in tables exclude legs/base frame)
• Recyclability: ~95% of materials recyclable
• Designed for indoor and outdoor applications; units transportable and fit through standard doorframes
