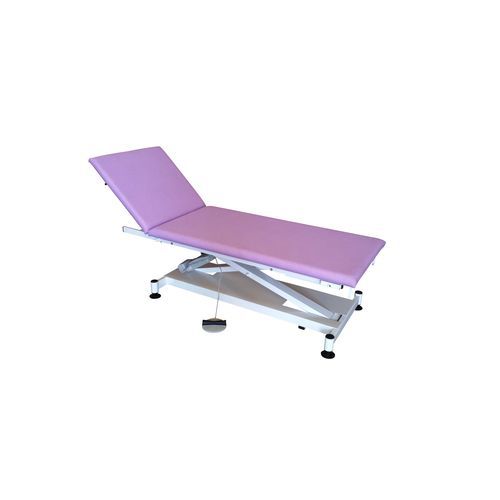

General examination couch adultelectricwith adjustable backrest
Add to favorites
Compare this product
Characteristics
- Applications
- general
- Patient type
- adult
- Operation
- electric
- Features
- with adjustable backrest, height-adjustable
- Number of sections
- 2-section
- Color
- violet
- Weight capacity
220 kg
(485 lb)- Length
2,000 mm
(78.7 in)- Width
670 mm, 800 mm
(26.4 in, 31.5 in)- Height
Min.: 490 mm
(19.29 in)Max.: 960 mm
(37.8 in)- Mattress thickness
4 cm
(1.6 in)
Description
FEATURES:
DIMENSIONS:
OPTIONS:
TECHNICAL SPECIFICATIONS:
- Electric couch with height adjustment from 490 to 960 mm
- Frame made of white epoxy rectangular tubing
- Protective cover at the base for stability and cable protection
- Equipped with 4 adjustable black polyamide glides
- Stitched upholstery, 40 mm thick
- Backrest adjustable by gas spring with bilateral control
- Integrated roll holder on backrest
- Foot control (standard)
- Seat and backrest foam density: 28 kg/m³
- Class II motor
DIMENSIONS:
- Overall dimensions: L. 2000 × W. 670 × H. 490/960 mm
- Backrest dimensions: L. 600 × W. 670 mm
- Seat dimensions: L. 1350 × W. 670 mm
- Net weight: 80 kg
- Maximum load capacity: 220 kg
- Warranty: 4 years (excluding upholstery)
OPTIONS:
- Face hole (LIGHT)
- Folding barriers (2160/B)
- Protective cover for barriers (2161/B)
- Retractable casters (ROUL/ESCA)
- Set of 4 casters Ø100 mm with brakes (2160/R) — modified max/min height
- Set of 4 double-wheel casters Ø75 mm with brakes (2180/R) — modified max/min height
- Set of 4 double-wheel casters Ø100 mm with brakes (2190/R) — modified max/min height
- Pair of sliding caliper bushings (2106/12DE)
- Pair of black polyurethane foam stirrups (1991/2)
- Pair of stainless steel stirrups (1991/0)
- Pair of PU leg rests with ball joint system (ROTULES/PU)
- Peripheral control for height adjustment (PERIPH)
- Electric backrest (manual control) (DOS/ELEC)
- Electric backrest (foot control) (DOS/ELECP)
- Self-contained battery (max. 24 hours after charging / 50 cycles) (3515/0)
- Chrome socket + slide for IV pole (2050/D)
- IV pole with 2 hooks (2050/80)
- Semi-cylindrical cushion, 600 mm wide (for 670 mm couch) (4160/1)
- Clear PVC foot protection (PROTEC)
- Clear PVC cover for entire couch (Velcro) (PROTECTOTAL/VELCRO)
- Clear PVC cover for entire couch (stapled) (TOTAL PROTECTION/STAPLT)
- Rails + sliding sockets (pair) for IV pole/armrest (2160/RAIL)
- Pair of PU gutters – height and tilt adjustable (3053/G)
- Manual 2-button control (instead of foot control) (CDEMANCAIX)
- Bluetooth motorization (wireless foot control) (CDEPIED/BLUETOOTH)
TECHNICAL SPECIFICATIONS:
- Reference: 4700/0
- EAN-13: 3760315452136
- Adjustable height range: 490–960 mm
- Frame: white epoxy rectangular tubing
- Upholstery thickness: 40 mm, stitched
- Foam density (seat & backrest): 28 kg/m³
- Backrest adjustment: gas spring (bilateral control)
- Control: foot control (standard); peripheral/manual controls available as options
- Glides: 4 adjustable black polyamide glides
- Maximum load capacity: 220 kg
- Net weight (stated): 80 kg
- Motor classification: Class II
- Warranty: 4 years (excluding upholstery)
