EEG examination chair EEG chair
electricwith legreston casters

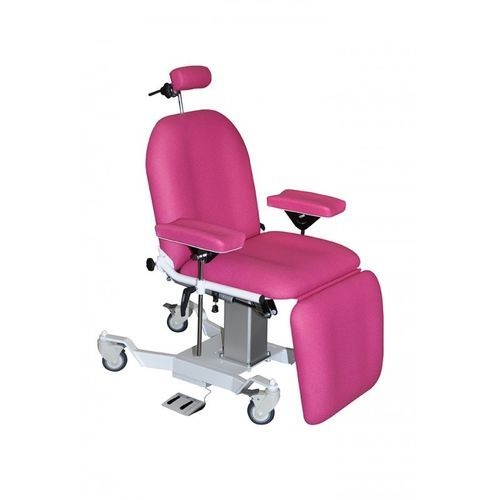

EEG examination chair - EEG chair - VOG MEDICAL - electric / with legrest / on casters
EEG examination chair - EEG chair - VOG MEDICAL - electric / with legrest / on casters
EEG examination chair - EEG chair - VOG MEDICAL - electric / with legrest / on casters - image - 2
EEG examination chair - EEG chair - VOG MEDICAL - electric / with legrest / on casters - image - 3
Add to favorites
Compare this product
Go to the VOG MEDICAL website for more information

Characteristics

Applications
EEG
Operation
electric
Features
with legrest, on casters, with adjustable backrest, height-adjustable
Number of sections
3-section
Weight capacity

Max.: 220 kg
(485 lb)

Min.: 220 kg
(485 lb)

Weight

Max.: 70 kg
(154 lb)

Min.: 70 kg
(154 lb)

Seat height

Max.: 72 cm
(28.3 in)

Min.: 52 cm
(20.5 in)

Height

Max.: 72 cm
(28.3 in)

Min.: 52 cm
(20.5 in)

Width

Max.: 85 cm
(33.5 in)

Min.: 85 cm
(33.5 in)

Length

Max.: 178 cm
(70.1 in)

Min.: 178 cm
(70.1 in)

Description

FEATURES:
  • Three-section consultation chair designed for EEG and neurophysiology examinations.
  • X-shaped base with 4 casters Ø 100 mm, with brakes, for mobility and stability.
  • Electric column with height adjustment from 520 to 720 mm.
  • Synchronous backrest and leg rest adjustable by gas spring.
  • Headrest adjustable in height and depth.
  • Two swiveling, articulated, height-adjustable PVC-coated armrests.
  • Foam density: 38 kg/m3.


DIMENSIONS:
  • Overall dimensions: L 1780 × W 850 × H 520/720 mm.
  • Backrest: L 660 × W 540 mm.
  • Seat: L 480 × W 540 mm.
  • Leg rest: L 300 × W 540 mm.
  • Chair weight (as stated): 70 kg (product metadata weight: 45 kg).
  • Maximum load / weight capacity: 220 kg.
  • Warranty: 4 years (upholstery excluded).


OPTIONS:
  • Pair of PVC armrests with ball joint system (BALL JOINTS/ACC).
  • Rotating system (increases height by 100 mm) (3521/0).
  • Height-adjustable and swiveling ear-shaped headrest Ø 9 cm (603/0).
  • Clear PVC seat protector (PROTEC).
  • Clear PVC leg protector (PROTEC/JAMB).
  • Roll holder (2009/0).


ADDITIONAL INFORMATION:
  • Reference: 3060/ELEC.
  • EAN-13: 3760315451313.


TECHNICAL SPECIFICATIONS:
  • Product name: EEG chair - electric column - without swivel system.
  • Model designation: EEG chair.
  • Reference (SKU): 3060/ELEC.
  • EAN-13: 3760315451313.
  • Electric column height range: 520–720 mm.
  • Caster diameter: 100 mm (4 casters with brakes).
  • Backrest & leg rest: synchronous, adjustable by gas spring.
  • Headrest: adjustable in height and depth; optional ear-shaped Ø 9 cm.
  • Armrests: 2 swiveling, articulated, height-adjustable, PVC-coated; optional ball joint system.
  • Foam density: 38 kg/m3.
  • Overall dimensions: 1780 × 850 × 520/720 mm.
  • Seat: 480 × 540 mm.
  • Backrest: 660 × 540 mm.
  • Leg rest: 300 × 540 mm.
  • Chair weight: 70 kg (product page metadata: 45 kg).
  • Maximum load: 220 kg.
  • Warranty: 4 years (upholstery excluded).
