General examination couch Licata
adultelectricheight-adjustable

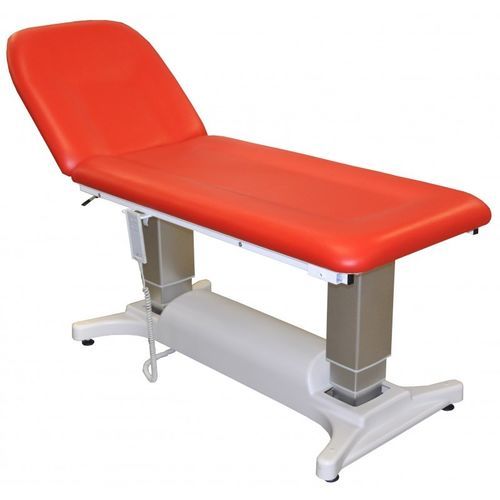

General examination couch - Licata - VOG MEDICAL - adult / electric / height-adjustable
General examination couch - Licata - VOG MEDICAL - adult / electric / height-adjustable
General examination couch - Licata - VOG MEDICAL - adult / electric / height-adjustable - image - 2
General examination couch - Licata - VOG MEDICAL - adult / electric / height-adjustable - image - 3
Add to favorites
Compare this product
Go to the VOG MEDICAL website for more information

Characteristics

Applications
general
Patient type
adult
Operation
electric
Features
height-adjustable, with adjustable backrest, Trendelenburg, reverse Trendelenburg
Number of sections
2-section
Color
orange
Weight capacity

300 kg
(661.4 lb)

Length

200 cm
(78.7 in)

Width

80 cm
(31.5 in)

Height

Min.: 62 cm
(24.41 in)

Max.: 102 cm
(40.16 in)

Mattress thickness

5 cm
(2 in)

Description

FEATURES:
  • Height adjustable from 620 to 1020 mm with proclive/declive (+11° / -11°)
  • Frame made of epoxy-coated square tubing
  • Equipped with 4 adjustable black polyamide glides
  • Stretched upholstery with 50 mm thick side bolsters
  • Proclive/declive backrest (+75° / -15°) adjustable by gas spring (bilateral control)
  • Underside of seat and backrest in white ABS cover
  • Roll holder mounted on backrest
  • Manual control (electro-mechanical options available)
  • Seat and backrest foam density: 38 kg/m3
  • Class II engine


DIMENSIONS:
  • Overall dimensions: L 2000 × W 800 × H 620–1020 mm
  • Backrest (panel) dimensions: L 650 × W 800 mm
  • Seat dimensions: L 1300 × W 800 mm
  • Product weight (declared): 90 kg
  • Load capacity: 300 kg
  • Warranty: 4 years (upholstery excluded)


OPTIONS:
  • Set of 4 casters (ø 100 mm) with central locking (modified max/min height) (2170/R)
  • Set of 4 casters (ø 100 mm with brakes) (modified max/min height) (2160/R)
  • Set of 4 double-wheel casters (Ø 75 mm with brake) (modified max/min height) (2180/R)
  • Set of 4 double-wheel casters (Ø 100 mm with brake) (modified max/min height) (2190/R)
  • Face hole in the backrest (LIGHT)
  • Folding side rails (2160/B)
  • Protective cover for the side rail (pair) (2161/B)
  • Pair of sliding caliper bushings (2106/12DE)
  • Pair of stainless steel stirrups (1991/0)
  • Pair of black polyurethane foam stirrups (1991/2)
  • PU foam leg rest with ball joint system (ROTULES/PU)
  • Chrome socket + slide for IV pole (2050/D)
  • IV pole with 2 simple hooks (2050/80)
  • Electric backrest (manual control) (DOS/ELEC)
  • Electric backrest (foot control) (DOS/ELECP)
  • Self-contained battery (max. 24 hours after charging / 50 cycles) (3515/0)
  • Semi-cylindrical cushion, 700 mm wide (for 800 mm couch) (4160/2)
  • Clear PVC cover (2-section legs / 3-section central section / chair seat) (PROTEC)
  • Clear PVC cover - entire couch (Velcro fastening) (PROTECTOTAL/VELCRO)
  • Clear PVC protection - entire couch (stapled to upholstery)
  • Rails + sliding sockets (pair) for IV pole / armrest (2160/RAIL)
  • Pair of PU gutters – height and tilt adjustable (3053/G)
  • 4-button foot control (instead of manual control) (CDEPIEDLICATA)
  • Anatomical upholstery - 80 cm wide (SELLANA/80)
  • Bluetooth motorization (wireless manual control) (CDEMAN/BLUETOOTH)


TECHNICAL SPECIFICATIONS:
  • Model / Series: Licata
  • Reference / SKU: 2136/80/C
  • EAN-13: 3760315451924
  • Height adjustment range: 620–1020 mm (+11° / -11° proclive/declive)
  • Backrest tilt: +75° / -15°, gas spring, bilateral control
  • Frame material: epoxy-coated square tubing
  • Upholstery: stretched upholstery with 50 mm side bolsters; seat/back foam density 38 kg/m3
  • Underside material: white ABS cover under seat and backrest
  • Feet / support: 4 adjustable black polyamide glides (optional caster sets available)
  • Controls: manual control (optional foot control, 4-button foot control, electric backrest)
  • Engine class: Class II
  • Load capacity: 300 kg
  • Declared product weight: 90 kg (meta weight: 85 kg)
  • Warranty: 4 years (upholstery excluded)
