General examination couch 2129/C
adultelectricheight-adjustable

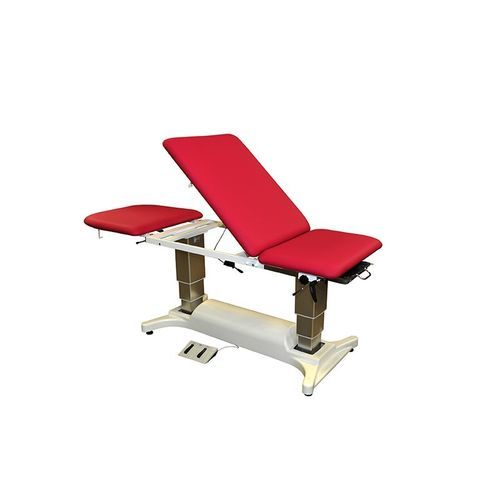

General examination couch - 2129/C - VOG MEDICAL - adult / electric / height-adjustable
General examination couch - 2129/C - VOG MEDICAL - adult / electric / height-adjustable
General examination couch - 2129/C - VOG MEDICAL - adult / electric / height-adjustable - image - 2
General examination couch - 2129/C - VOG MEDICAL - adult / electric / height-adjustable - image - 3
General examination couch - 2129/C - VOG MEDICAL - adult / electric / height-adjustable - image - 4
General examination couch - 2129/C - VOG MEDICAL - adult / electric / height-adjustable - image - 5
General examination couch - 2129/C - VOG MEDICAL - adult / electric / height-adjustable - image - 6
General examination couch - 2129/C - VOG MEDICAL - adult / electric / height-adjustable - image - 7
Add to favorites
Compare this product
Go to the VOG MEDICAL website for more information

Characteristics

Applications
general
Patient type
adult
Operation
electric
Features
with adjustable backrest, height-adjustable, reclining
Number of sections
3-section
Color
red, orange
Weight capacity

300 kg
(661.4 lb)

Length

2,000 mm
(78.7 in)

Width

670 mm, 800 mm
(26.4 in, 31.5 in)

Height

Min.: 540 mm
(21.26 in)

Max.: 1,000 mm
(39.37 in)

Mattress thickness

4 cm
(1.6 in)

Description

FEATURES:
  • Height adjustable from 540 to 940 mm.
  • Frame made of epoxy square tubing.
  • Equipped with 4 adjustable black polyamide glides.
  • Flat upholstery, 40 mm thick.
  • Proclive/declive backrest (+75° / -15°) adjustable by gas spring (bilateral control).
  • Central section adjustable by gas spring; manually adjustable liftable seat.
  • Sliding stainless steel toilet bowl.
  • Pair of sliding caliper sockets.
  • Underside of seat and backrest in white ABS cover.
  • Roll holder (backrest and central part).
  • Seat and backrest foam density 38 kg/m3.
  • Foot control.
  • Class II engine.


DIMENSIONS:
  • Overall dimensions: L. 2000 × W. 670 × H. 540/940 mm.
  • Backrest (file) dimensions: L. 650 × W. 670 mm.
  • Central part: L. 850 × W. 670 mm.
  • Seat: L. 450 × W. 670 mm.
  • Weight of the sofa: 80 kg.
  • Weight capacity: 300 kg.
  • Warranty: 4 years excluding upholstery.


OPTIONS:
  • Set of 4 casters (Ø 100 mm) with central locking (modified max/min height).
  • Set of 4 casters (Ø 100 mm with brakes) (modified max/min height).
  • Set of 4 double-wheel casters (Ø 75 mm with brake) (modified max/min height).
  • Set of 4 double-wheel casters (Ø 100 mm with brake) (modified max/min height).
  • Face hole in the backrest.
  • Folding side rails / folding barriers.
  • Protective cover for the side rail (pair).
  • Pair of stainless steel stirrups (calipers).
  • Pair of black polyurethane foam stirrups.
  • PU foam leg rest with ball joint system.
  • Chrome socket + slide for IV pole.
  • IV pole with 2 simple hooks.
  • Electric backrest (manual control).
  • Electric backrest (foot control).
  • Self-contained battery (max. 24 hours after charging / 50 cycles).
  • Semi-cylindrical cushion, 600 mm wide (for 670 mm couch).
  • Crystal clear PVC protection for the central section (partial or 3rd part).
  • Crystal clear PVC cover – entire couch (Velcro fastening or stapled to the upholstery).
  • Rails + sliding sockets (pair) for IV pole / armrest.
  • Pair of height-adjustable and tiltable PU guttering.
  • Manual 2-button control (instead of foot control).
  • Cutout on the 3-section sofa seat.
  • Bluetooth motorization (wireless foot control).


TECHNICAL SPECIFICATIONS:
  • Commercial model / series: Licata.
  • Reference / SKU: 2129/C.
  • EAN-13: 3760315451832.
  • Product weight: 80 kg.
  • Maximum load capacity: 300 kg.
  • Height adjustment range: 540 mm – 940 mm.
  • Upholstery: flat upholstery, 40 mm thickness.
  • Upholstery foam density (seat & backrest): 38 kg/m³.
  • Frame: epoxy-coated square tubing.
  • Under-seat/backrest cover: white ABS.
  • Backrest adjustment: gas spring, bilateral control, +75° / -15°.
  • Central section: gas spring assisted; seat manually liftable.
  • Accessories: sliding stainless steel toilet bowl; roll holder on backrest and central part.
  • Glides: 4 adjustable black polyamide glides (optional caster sets available).
  • Control: foot control standard; optional manual 2-button or wireless solutions.
  • Drive / motor class: Class II engine.
  • Dimensions (L×W×H): 2000 × 670 × 540/940 mm.
  • Backrest (file) dimensions: 650 × 670 mm.
  • Central part dimensions: 850 × 670 mm.
  • Seat dimensions: 450 × 670 mm.
  • Warranty: 4 years (upholstery excluded).
