Electric examination table
height-adjustablewith adjustable backrest3-section

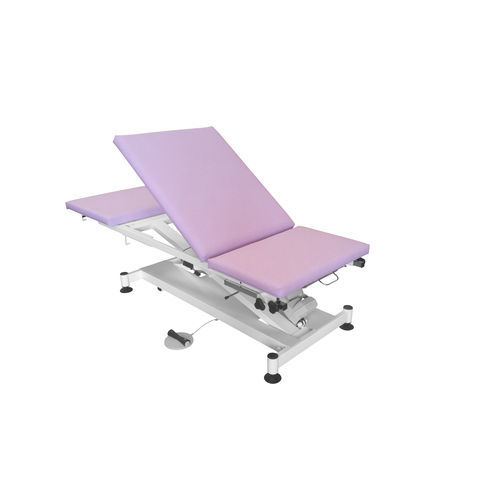

Electric examination table - VOG MEDICAL - height-adjustable / with adjustable backrest / 3-section
Electric examination table - VOG MEDICAL - height-adjustable / with adjustable backrest / 3-section
Electric examination table - VOG MEDICAL - height-adjustable / with adjustable backrest / 3-section - image - 2
Electric examination table - VOG MEDICAL - height-adjustable / with adjustable backrest / 3-section - image - 3
Add to favorites
Compare this product
Go to the VOG MEDICAL website for more information

Characteristics

Operation
electric
Features
height-adjustable, with adjustable backrest
Number of sections
3-section
Color
violet
Weight capacity

220 kg
(485 lb)

Length

2,000 mm
(78.7 in)

Width

670 mm, 800 mm
(26.4 in, 31.5 in)

Height

Max.: 960 mm
(37.8 in)

Min.: 490 mm
(19.29 in)

Mattress thickness

40 mm
(1.6 in)

Description

FEATURES:
  • Electric height-adjustable couch with range 490–960 mm.
  • Frame in white epoxy rectangular tubing with protective base cover.
  • Equipped with 4 adjustable black polyamide glides.
  • Stitched upholstery, 40 mm thickness; foam density 28 kg/m3.
  • Backrest adjustable by gas spring (bilateral control).
  • Central section adjustable by gas spring with manual cable control (left or right, to be specified).
  • Liftable seat, manually adjustable.
  • Stainless steel bowl included.
  • Paper roll holder for backrest and central section.
  • Foot control standard; peripheral or manual control options available.
  • Sliding sockets for stirrups; compatible with multiple stirrup options.
  • Class II motor.


DIMENSIONS:
  • Overall: L 2000 × W 670 × H 490/960 mm.
  • Backrest: L 600 × W 670 mm.
  • Central section: L 850 × W 670 mm.
  • Seat: L 440 × W 670 mm.
  • Product weight: 80 kg.
  • Load capacity: 220 kg.
  • Warranty: 4 years (upholstery excluded).


OPTIONS:
  • Face hole (LIGHT).
  • Folding barriers (2160/B).
  • Protective cover for barriers (2161/B).
  • Retractable casters (ROUL/ESCA).
  • Set of 4 casters Ø 100 mm with brakes (2160/R) (modified max/min height).
  • Set of 4 double-wheel casters Ø 75 mm with brake (2180/R) (modified max/min height).
  • Set of 4 double-wheel casters Ø 100 mm with brake (2190/R) (modified max/min height).
  • Pair of black polyurethane foam stirrups (1991/2).
  • Pair of stainless steel stirrups (1991/0).
  • PU foam leg rest with ball joint system (ROTULES/PU).
  • Peripheral control for height adjustment (PERIPH).
  • Electric backrest (manual control) (DOS/ELEC).
  • Electric backrest (foot control) (DOS/ELECP).
  • Self-contained battery (max duration 24 hours after charging / 50 cycles) (3515/0).
  • Chrome socket + slide for IV pole (2050/D).
  • IV pole with 2 simple hooks (2050/80).
  • Semi-cylindrical cushion, 600 mm wide (for 670 mm couch) (4160/1).
  • Crystal clear PVC protection for the central section (PROTEC).
  • Clear crystal PVC protection – 3rd part (PROTEC/3EMEPARTIE).
  • Crystal clear PVC cover – entire couch (Velcro) (PROTECTOTAL/VELCRO).
  • Crystal clear PVC protection – entire couch (stapled to upholstery) (TOTAL PROTECTION/STAPLT).
  • Rails + sliding sockets (pair) for IV pole/armrest (2160/RAIL).
  • Pair of PU gutters – height and tilt adjustable (3053/G).
  • Manual 2-button control (instead of foot control) (CDEMANCAIX).
  • Bluetooth motorization (wireless foot control) (CDEPIED/BLUETOOTH).


TECHNICAL SPECIFICATIONS:
  • Reference (SKU): 4710/0.
  • EAN-13: 3760315452112.
  • Adjustable height range: 490–960 mm.
  • Overall dimensions: 2000 × 670 × 490/960 mm.
  • Central section length: 850 mm.
  • Seat dimensions: 440 × 670 mm.
  • Upholstery thickness: 40 mm; foam density: 28 kg/m3.
  • Frame: white epoxy rectangular tubing.
  • Base: protective cover; 4 adjustable black polyamide glides.
  • Adjustments: backrest by gas springs (bilateral control); central section by gas spring (manual cable); seat lift manually adjustable.
  • Includes: stainless steel bowl; paper roll holder; sliding sockets for stirrups.
  • Control: foot control standard; peripheral/manual options available.
  • Motor: Class II.
  • Product weight: 80 kg.
  • Load capacity: 220 kg.
  • Warranty: 4 years (upholstery excluded).
