General examination couch 2127/C
adultelectricheight-adjustable

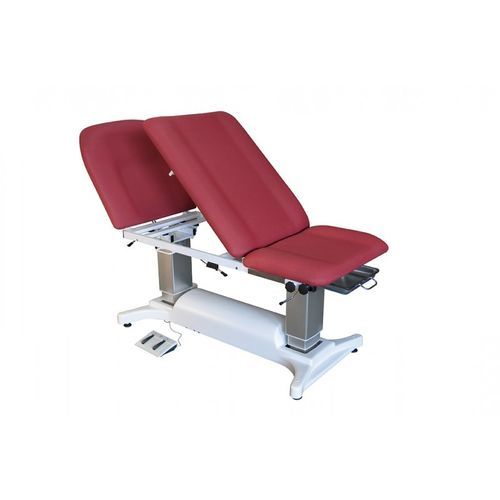

General examination couch - 2127/C - VOG MEDICAL - adult / electric / height-adjustable
General examination couch - 2127/C - VOG MEDICAL - adult / electric / height-adjustable
General examination couch - 2127/C - VOG MEDICAL - adult / electric / height-adjustable - image - 2
General examination couch - 2127/C - VOG MEDICAL - adult / electric / height-adjustable - image - 3
General examination couch - 2127/C - VOG MEDICAL - adult / electric / height-adjustable - image - 4
Add to favorites
Compare this product
Go to the VOG MEDICAL website for more information

Characteristics

Applications
general
Patient type
adult
Operation
electric
Features
with adjustable backrest, height-adjustable
Number of sections
3-section
Color
red
Weight capacity

300 kg
(661.4 lb)

Length

2,000 mm
(78.7 in)

Width

670 mm, 800 mm
(26.4 in, 31.5 in)

Height

Max.: 1,020 mm
(40.16 in)

Min.: 560 mm
(22.05 in)

Mattress thickness

5 cm
(2 in)

Description

FEATURES:
  • Height adjustable from 560 to 960 mm.
  • Frame made of epoxy square tubing.
  • Equipped with 4 adjustable black polyamide glides.
  • Stretched upholstery with 50 mm thick side bolsters.
  • Proclive/declive backrest (+75° / -15°) adjustable by gas spring (bilateral control).
  • Central section adjustable by gas spring; manually liftable seat.
  • Sliding stainless steel toilet bowl.
  • Pair of sliding caliper sockets.
  • Underside of seat and backrest in white ABS cover.
  • Roll holder on backrest and central part.
  • Seat and backrest foam density: 38 kg/m3.
  • Foot control (standard).
  • Class II motor.


DIMENSIONS:
  • Overall dimensions: L 2000 × W 800 × H 560/960 mm.
  • Backrest dimensions: L 650 × W 800 mm.
  • Central part dimensions: L 850 × W 800 mm.
  • Seat dimensions: L 450 × W 800 mm.
  • Declared weight: 90 kg (meta product weight: 85.0 kg).
  • Maximum load capacity: 300 kg.
  • Warranty: 4 years (excluding upholstery).


OPTIONS:
  • Set of 4 casters (Ø 100 mm) with central locking (modified height) (2170/R).
  • Set of 4 casters (Ø 100 mm with brakes) (modified height) (2160/R).
  • Set of 4 double-wheel casters (Ø 75 mm with brakes) (modified height) (2180/R).
  • Set of 4 double-wheel casters (Ø 100 mm with brakes) (modified height) (2190/R).
  • Face hole in the backrest (LIGHT).
  • Folding side rails / folding barriers (2160/B).
  • Protective cover for the side rail (pair) (2161/B).
  • Pair of stainless steel stirrups (1991/0).
  • Pair of black polyurethane foam stirrups (1991/2).
  • PU foam leg rest with ball joint system (BALL JOINTS/PU).
  • Chrome socket + slide for IV pole (2050/D).
  • IV pole with 2 simple hooks (2050/80).
  • Electric backrest (manual control) (DOS/ELEC).
  • Electric backrest (foot control) (DOS/ELECP).
  • Self-contained battery (max. 24 hours after charging / 50 cycles) (3515/0).
  • Semi-cylindrical cushion, 700 mm wide (for 800 mm couch) (4160/2).
  • Crystal clear PVC protection for the central section (PROTEC).
  • Clear crystal PVC protection – 3rd part (PROTEC/3EMEPARTIE).
  • Crystal clear PVC cover – for the entire couch (Velcro fastening) (PROTECTOTAL/VELCRO).
  • Crystal clear PVC protection – entire couch (stapled to the upholstery) (TOTAL PROTECTION/STAPLT).
  • Rails + sliding sockets (pair) for IV pole / armrest (2160/RAIL).
  • Pair of PU gutters – height and tilt adjustable (3053/G).
  • Manual 2-button control (instead of foot control) (CDEMANLICATA).
  • Cutout on the couch seat (CUTOUT/3 PLANES).
  • Bluetooth motorization (wireless foot control) (FOOT CONTROL/BLUETOOTH).


TECHNICAL SPECIFICATIONS:
  • Commercial name / Model: Licata
  • Reference / SKU: 2127/80/C
  • EAN13: 3760315451863
  • Frame: epoxy square tubing.
  • Upholstery: stretched upholstery with 50 mm thick side bolsters.
  • Foam density (seat & backrest): 38 kg/m3.
  • Height adjustment range: 560 – 960 mm.
  • Backrest angle (proclive/declive): +75° / -15° (gas spring, bilateral control).
  • Central section: adjustable by gas spring; liftable seat (manual).
  • Toilet bowl: sliding stainless steel.
  • Sockets: pair of sliding caliper sockets.
  • Underside cover: white ABS (seat and backrest underside).
  • Accessories available: caster sets, stirrups, IV pole, cushions, covers, electric/backrest motorization, battery options, Bluetooth motorization, protective PVC covers, gutters, rails with sliding sockets.
  • Overall dimensions: 2000 × 800 × 560/960 mm (L × W × H).
  • Seat dimensions: 450 × 800 mm (L × W).
  • Central part dimensions: 850 × 800 mm (L × W).
  • Backrest dimensions: 650 × 800 mm (L × W).
  • Declared weight: 90 kg (meta product weight: 85.0 kg).
  • Maximum load / Weight capacity: 300 kg.
  • Warranty: 4 years (excluding upholstery).
  • Control: foot control (standard) — optional manual 2-button control, foot control variants, or Bluetooth wireless foot control.
