Pediatric examination table Caix
pediatricelectricheight-adjustable

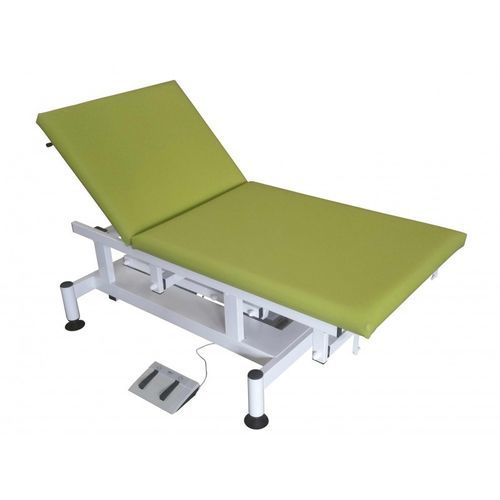

Pediatric examination table - Caix - VOG MEDICAL - pediatric / electric / height-adjustable
Pediatric examination table - Caix - VOG MEDICAL - pediatric / electric / height-adjustable
Pediatric examination table - Caix - VOG MEDICAL - pediatric / electric / height-adjustable - image - 2
Pediatric examination table - Caix - VOG MEDICAL - pediatric / electric / height-adjustable - image - 3
Add to favorites
Compare this product
Go to the VOG MEDICAL website for more information

Characteristics

Applications
pediatric
Patient type
pediatric
Operation
electric
Features
height-adjustable, with adjustable backrest
Number of sections
2-section
Color
white
Weight capacity

Max.: 180 kg
(396.8 lb)

Min.: 180 kg
(396.8 lb)

Length

Max.: 140 cm
(55.1 in)

Min.: 140 cm
(55.1 in)

Width

Max.: 67 cm
(26.4 in)

Min.: 67 cm
(26.4 in)

Height

Max.: 94 cm
(37.01 in)

Min.: 54 cm
(21.26 in)

Mattress thickness

Max.: 4 cm
(1.6 in)

Min.: 4 cm
(1.6 in)

Description

Reference
REFERENCE: 1111/PEDIA

Features:
  • Electric height adjustment from 540 to 940 mm
  • Rearward movement of 300 mm
  • Frame in white epoxy rectangular tubing with protective base cover
  • Equipped with 4 adjustable black polyamide glides
  • Stitched upholstery, 40 mm thickness; seat and backrest foam density 28 kg/m3
  • Backrest adjustable by gas spring (bilateral control)
  • Foot control (standard); optional manual 2-button control
  • Roll holder (backrest)
  • Class II motor


Dimensions:
  • Overall: L 1400 × W 670 × H 540/940 mm
  • File area: L 500 × W 670 mm
  • Seat: L 850 × W 670 mm
  • Sofa weight: 80 kg (product weight: 58.0 kg)
  • Maximum load capacity: 180 kg
  • Warranty: 4 years (excluding upholstery)


Options:
  • Folding barriers (2160/B)
  • Protective cover for barriers (2161/B)
  • Retractable casters (ROUL/ESCA)
  • Set of 4 casters (Ø 100 mm with brakes) (modified max/min height) (2160/R)
  • Set of 4 double-wheel casters (Ø 75 mm with brake) (modified max/min height) (2180/R)
  • Set of 4 double-wheel casters (Ø 100 mm with brake) (modified max/min height) (2190/R)
  • Electric backrest (manual control) (BACK/ELEC)
  • Electric backrest (foot control) (BACK/ELECP)
  • Self-contained battery (max. duration 24 hours after charging / 50 cycles) (3515/0)
  • Chrome socket and slide for IV pole (2050/D)
  • IV pole, 2 single hooks (2050/80)
  • Semi-cylindrical cushion, 600 mm wide (for 670 mm sofa) (4160/1)
  • Crystal clear PVC protection for patient’s feet (PROTEC)
  • Crystal clear PVC cover – full sofa (Velcro) (PROTECTOTAL/VELCRO)
  • Crystal clear PVC protection – full sofa (stapled) (TOTAL PROTECTION/STAPLT)
  • Rail + sliding socket (pair) for IV pole/armrest (2160/RAIL)
  • Pair of PU gutters – height and tilt adjustable (3053/G)
  • Manual 2-button control (instead of foot control) (CDEMANCAIX)


Technical specifications:
  • Reference: 1111/PEDIA
  • EAN-13: 3760315451634
  • Height adjustment range: 540–940 mm
  • Rearward movement: 300 mm
  • Frame: white epoxy rectangular tubing
  • Protective base cover: included
  • Glides: 4 adjustable black polyamide glides
  • Upholstery: stitched, 40 mm thickness
  • Backrest: gas spring adjustable (bilateral control)
  • Controls: foot control (standard); manual 2-button optional
  • Foam density (seat & backrest): 28 kg/m3
  • Motor class: Class II
  • Overall dimensions: L 1400 × W 670 × H 540/940 mm
  • File dimensions: L 500 × W 670 mm
  • Seat dimensions: L 850 × W 670 mm
  • Sofa weight (page text): 80 kg
  • Product weight (meta): 58.0 kg
  • Maximum load capacity: 180 kg
  • Warranty: 4 years (excluding upholstery)
