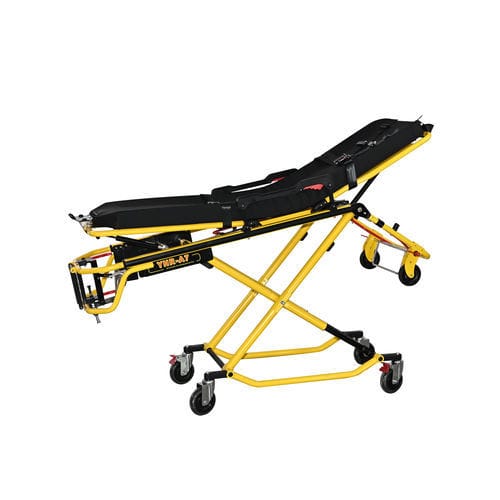

Ambulance stretcher trolley YHR-A7

manualfoldingwith adjustable backrest

STANDARD FEATURES - 2 Man Operational Cot - Multi-Height adjusted - X-frame ambulance stretcher - Both ends can be tilted - Length is adjustable pass small elevator - Vest type three-point safety belts, Two-stage I.V. pole, 10cm mattress - Collapsible side rails - Vehicle Locking Device Included - Durable aluminum alloy OPTIONAL FEATURES - Oxygen holder - Two-stage I.V. pole - Shelves for defibrillator and ventilator - Color of reflective strips Specifications - MODEL: YHR-A7 - MATERIAL: Aluminium alloy - PRODUCT SIZE(L*W*H): 200*59*117cm - CARTON SIZE(L*W*H): 207*60*46cm - Backrest: 75° - Load bearing: 325kg - N.W: 50kg - G.W: 60kg Features - Technical features 1. The main material is high-strength aluminum alloy which is hardened and surface plating treatment. 2. The stretcher can pass small lifts and narrow space. The length is adjustable, length adjustment adopts bayonet type synchronous folding mechanism. 3. Stretcher adopts X-type leg structure, the overall height can be adjusted in 8 positions, the highest loading height is 73cm. 4. Equipped with nylon adjustable guardrails and vest type three-point safety belts. 5. Mattress of the stretcher adopts PVC material concave shape. Thickness: 10cm. 6. Equipped with adjustable two-stage I.V pole, the max adjustable height is 71cm. 7. More than two medical staff are needed to lift up the stretcher onto the ambulance. 8. Optional accessories: Oxygen bottle holder, Placing planes for defibrillator and ventilator etc. 9. Wheels size: φ150mm
