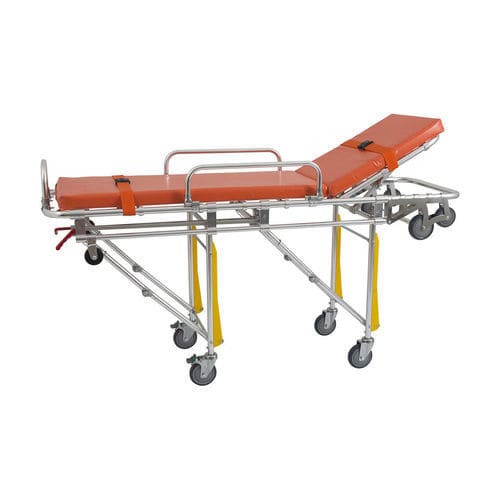

Ambulance stretcher trolley YHR-A1

manualfoldingheight-adjustable

Overview - The main material is high-strength aluminum alloy. - The backrest angle can be adjusted. - The mattress is made of wear-resistant mesh cloth, with a thickness of 6cm and disposable welding, flame retardant and waterproof. - Equipped with aluminum alloy adjustable guardrails and two safety belts. - Equipped with adjustable two-stage I.V. stand, the maximum adjustable length is 75cm. - There are two wheels, big and small on the upper part of loading which is used for the different height of the ambulance carriage, loading height 67cm, 65cm, 64cm. - Wheel size: φ125mm. Specifications Technical data - Model: YHR-A1 - Feature: High-low position - Waterproof seamless welding PVC mattress - Two straps - Swing-down side rails - Safety lever to control legs to fold - Two-stage I.V. pole - Vehicle Locking Device Included - Material: Durable aluminum alloy - Dimension: 190×55×(27-93)cm - Backrest: 0-75 degree - Capacity: Max.160kg (350 LBS) - N.W.: 37kg - Packing: 195×65×28cm; 1pc/CTN - G.W.: 43kg Technical data - Model: YHR-A1-2 - Feature: High-low position - 5cm mattress, Two straps - Two-stage I.V. pole - Vehicle Locking Device Included - Removable double top - Both ends can be tilted - Material: Durable aluminum alloy - Dimension: 193×55×(36-98)cm - Backrest: 0-75 degree - Capacity: Max.160kg (350 LBS) - N.W.: 39kg - Packing: 198×65×38cm; 1pc/CTN - G.W.: 45kg Technical Features / Specifications - Main material: High-strength aluminum alloy - Backrest angle: 0-75 degree, adjustable - Mattress: Wear-resistant mesh cloth, 6cm thick, flame retardant, waterproof - Guardrails: Aluminum alloy, adjustable - Safety: Two safety belts - I.V. Stand: Adjustable, two-stage, max length 75cm - Wheels: φ125mm, two sizes for different ambulance carriage heights (67cm, 65cm, 64cm) - Capacity: Max. 160kg (350 LBS) - Net Weight: 37kg (YHR-A1), 39kg (YHR-A1-2) - Gross Weight: 43kg (YHR-A1), 45kg (YHR-A1-2) - Packing size: 195×65×28cm (YHR-A1), 198×65×38cm (YHR-A1-2) - Dimension: 190×55×(27-93)cm (YHR-A1), 193×55×(36-98)cm (YHR-A1-2) - Vehicle Locking Device Included - Removable double top (YHR-A1-2) - Both ends can be tilted (YHR-A1-2)
