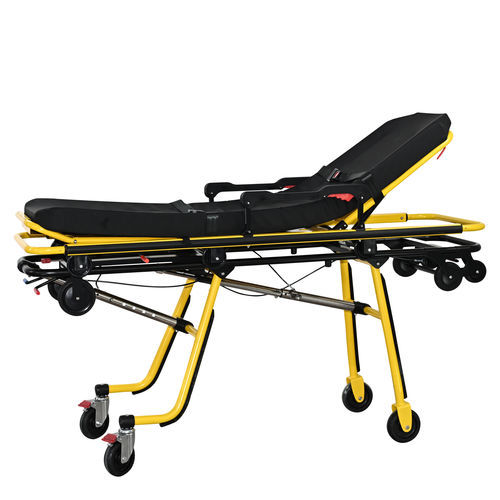

Ambulance stretcher trolley YHR-A9

transportemergencymanual

Overview - The main materials are high-strength carbon steel and aluminum alloy. - Stretcher face is separable and equipped with locking device. - The stretcher has a telescopic rod that adjusts the whole cot on 3 different levels. - Equipped with nylon adjustable guardrails, which is convenient for patients to get on and off stretchers, equipped with two safety belts. - Equipped with adjustable two-stage I.V pole, the max adjustable height is 71cm. - Mattress of the stretcher adopts PVC material concave shape. Thickness: 9.5cm. - Only one medical staff is needed to push the stretcher into the ambulance. - Wheel diameter: Φ150mm. Specifications - Name: Ambulance stretcher - Model: YHR-A9 - Feature: Multi-Height adjusted - Aluminum backboard - Both ends can be tilted - 10cm mattress, Two straps - Removable double top - Vehicle Locking Device Included - Two-stage I.V. pole - Collapsible side rails - Material: Carbon Steel & Durable aluminum alloy - Dimension: 195×57×91cm - Height range: 28cm-78cm-87cm-91cm - Castor: Φ150mm, front fixed, rear auto-directional - Backrest: 0-75 degree - Leg part: 0-15 degree - Capacity: Max. 200kg (440 LBS) - N.W.: 40kgs - Packing: 207×62×38cm, 1pc/CTN - G.W.: 45kgs
