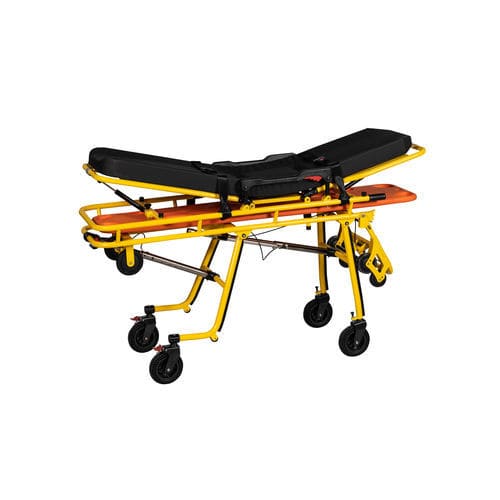

Ambulance stretcher trolley YHR-A10

mechanicalfoldingheight-adjustable

Overview - The main material is high quality stainless steel and surface treated. - The stretcher has double top storage, the space is 8cm high, making it possible to store 1 piece spine stretcher. - Leg adjustment adopts bayonet type synchronous folding mechanism and the length of the vehicle is at least 176cm, which is convenient for entering and leaving the civil elevator or other narrow spaces. - The backrest angle is adjusted by the gas spring, the range is 0-75°, and the leg adjustment range is 0-15°. - The overall stretcher can be adjusted in 3 positions to facilitate CPR operation. - The mattress of the stretcher adopts PVC material concave shape, thickness: 10cm. - The universal wheels on the front end adopt an elastic latch to lock; they can be locked to go straight or universal as needed. - Only one person can operate the stretcher onto the ambulance; the leg folding mechanism is controlled by the handle. Make sure it is locked with the fixtures after boarding! - Reversible guardrail protects patients during transfer; 2-section retractable infusion stand, max. length is 100cm, safety belt, fixing lock; oxygen tank support is optional. - Loading height: 62cm. Wheel size: φ200mm. Specifications - Name: Ambulance stretcher - Model: YHR-A10 - Feature: Multi-Height adjusted, Both ends can be tilted, Length is adjustable, 8cm Waterproof mattress, Two straps, Double top Storage 1pc spine board, Two-stage I.V. pole, Collapsible side rails, Vehicle Locking Device Included - Optional: Pillow, Oxygen holder - Material: Stainless steel & Aluminum alloy - Dimension: 198×55×91cm - Low Position (L*W*H): 201×55×44cm - Height range: 44-91cm - Castor: Φ200mm, Universal wheel 4pcs - Backrest: 0-88° - Leg part: 0-30° - Capacity: Max. 250kg (550 LBS) - N.W.: 59kgs - Packing: 203×64×46cm, 1pc/CTN - G.W.: 70kgs (Including a spinal plate)
