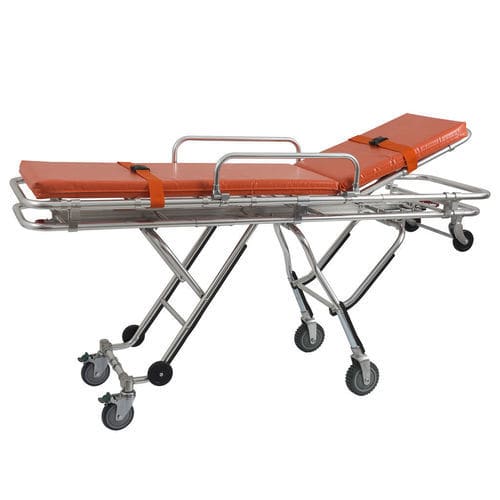

Ambulance stretcher trolley YHR-A4

mechanicalfoldingheight-adjustable

Overview - The main material is high-strength aluminum alloy which is hardened and surface treated. - The mattress is made of wear-resistant mesh cloth, with a thickness of 6cm and disposable welding, flame retardant and waterproof. - Equipped with aluminum alloy adjustable guardrails and two safety belts. - Equipped with adjustable two-stage I.V. Stand. The maximum adjustable length is 75cm. - Smart structure and adopts the mechanical structure of leg folding, which can conveniently realize various attitude changes. The height of 4 gears can be adjusted, and the leg folding mechanism can be controlled by the left and right handles, and only one medical staff is needed to push the stretcher into the ambulance. - The type YHR-A4 upper frame is not detachable, the type YHR-A5 upper frame is detachable. - The loading height is 64cm. Wheel size: φ125mm. Specifications - Name: Ambulance stretcher - Model: YHR-A4 - Material: Aluminum alloy - High Position (L*W*H): 196×55×98cm - Low Position (L*W*H): 196×55×34cm - Back part: 0-75° - Load bearing: Max. 160kg (350 LBS) - N.W.: 38.2kgs - Packing: 198×62×38cm; 1pc/CTN - G.W.: 44kgs Technical Features / Specifications: - High-strength aluminum alloy frame - Wear-resistant, flame retardant, waterproof mattress (6cm thick) - Adjustable guardrails and safety belts - Adjustable two-stage I.V. Stand (max 75cm) - Leg folding mechanism, 4 adjustable height gears - Loading height: 64cm - Wheel size: φ125mm - Max load: 160kg (350 LBS) - Net weight: 38.2kg, Gross weight: 44kg - Packing size: 198×62×38cm (1pc/CTN) - Backrest adjustable: 0-75°
