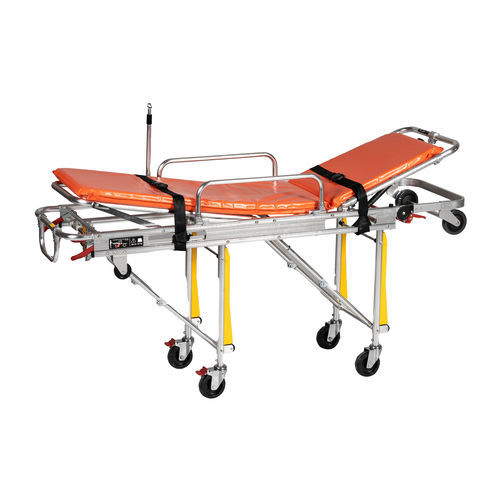

Ambulance stretcher trolley YHR-A3

manualfoldingheight-adjustable

Overview: - The main material is high-strength aluminum alloy which is hardened and surface treated - The backrest angle is adjusted by the gas spring, the range is 0-75°; The leg angle is supported by the brace, 15° - The mattress is seamless welded with sealed high density polyethylene coated nylon material, it’s waterproof and easy to clean, thickness 65mm - Equipped with adjustable two-stage I.V. stand, the length of stand is 44-75cm - Loading height: 62cm - Wheel size: φ200mm Specifications: - Model: YHR-A3 - Feature: High-low position stretcher - 5cm mattress, Two straps; 5cm - Length is adjustable to pass small elevator - Safety lever to control legs to fold - Two-stage I.V. pole - Swing-down side rails - Vehicle Locking Device Included - Material: Durable aluminum alloy - Dimension: 190×55×(25-92)cm - Backrest: 0-75 degree - Capacity: Max. 160kg (350 LBS) - N.W.: 40kg - Packing: 195×62×26cm; 1pc/CTN - G.W.: 45kg Technical Features / Specifications: - Main material: High-strength, surface-treated aluminum alloy - Backrest angle: 0-75° (gas spring adjustment) - Leg angle: 15° (brace support) - Mattress: 65mm thick, seamless welded, waterproof, high-density polyethylene coated nylon - Adjustable two-stage I.V. stand (44-75cm) - Loading height: 62cm - Wheel size: 200mm diameter - High-low position stretcher - 5cm mattress, two straps - Adjustable length for small elevator access - Safety lever for folding legs - Swing-down side rails - Vehicle locking device included - Material: Durable aluminum alloy - Dimensions: 190×55×(25-92)cm - Backrest: 0-75° - Capacity: Max. 160kg (350 lbs) - Net weight: 40kg - Packing: 195×62×26cm; 1pc/CTN - Gross weight: 45kg
