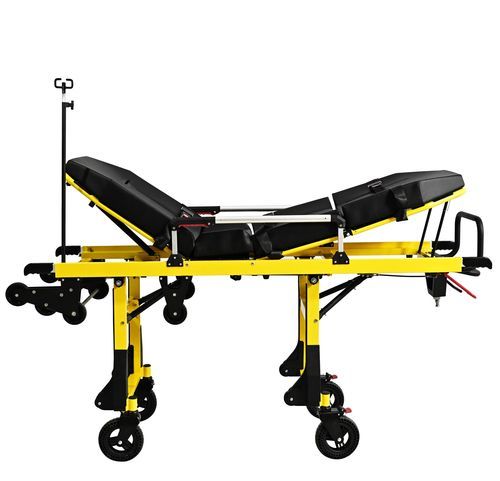

Transport stretcher trolley YHR-A12

emergencymanualfolding

Overview - The main material is high-strength aluminum alloy which is hardened and surface treated. - The overall height of the stretcher can be adjusted by ≥3 gears, which is convenient for CPR operation. - The front leg height can be adjusted by 2 gears, and the rear leg height can be adjusted by 3 gears. - The backrest is controlled by an air spring to adjust the angle. Angle of the back: 0-88°; The legs are mechanically supported to change position 0° or 15°. - There are three wheels in the loading part so that the boarding heights is wider range. - The guardrail is made of aluminium & plastic, the stretcher is equipped with two safety belts. - The universal wheels on the front end adopt an elastic latch to lock; they can be locked to go straight or universal as needed. Rear universal wheel with brake. - Only one medical staff is needed to push the stretcher into the ambulance car. - The locking mechanism is controlled by handles, the stretcher must be fixed with device when loading onto the ambulance! - Loading height: 580-690mm; wheels size: Φ200mm. - Mattress of the stretcher adopts PVC material concave shape, thickness: 10cm. The mat is characterized with high frequency seamless welding and waterproof, easy to clean. - It is equipped with a 2 stage IV stand; stretcher fixed device. - Accessories can be chosen: Oxygen tank support. Specifications - Name: Ambulance stretcher - Model: YHR-A12 - Feature: The overall height is adjustable - Four universal wheels. The front wheels can be locked to directional - It's high can be adjusted to CPR - The height of three wheels: 585mm, 640mm, 685mm - Adjustable structure guardrail, height: 17.5cm - Two safety belts - Three-point simultaneous locking device - Four retractable handles at both ends - Material: High-strength aluminum alloy and surface treated - Mattress: U-shaped waterproof superior mattress, thickness 10cm - Wheels: Φ200mm - High position: 197x57.5x101cm - Low position: 197x57.5x47cm - Backrest angle: 0-90° - Leg angle: 0° or 15° - N.W.: 51.5kgs - Load bearing: Max. 200kgs (440LBS) - Packing: 207x60x47cm; 1 set/CTN - G.W.: 62kgs
